Thermal Master T2 Max thermal camera (Android & iOS)
Details

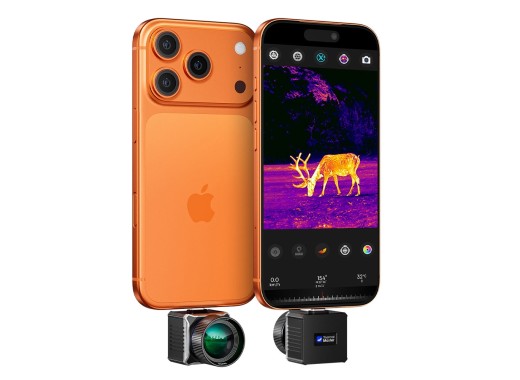

The Thermal Master T2 Max thermal camera is a camera module that allows you to turn your smartphone into a thermal imaging camera. The T2 Max can see up to 1500 meters, which is a lot further than standard thermal imaging cameras. Together with the high frame rate of 50Hz to display fast movements clearly, this camera is great for outdoor use. The thermal camera displays heats signatures in different colour modes, but does not display temperature measurements on the interface. The camera has an IR resolution of 256x192 (49152 pixels), which can be increased to 512×384 using upscaling, and it has a 15x digital zoom. Finally, night vision is included, and the T2 Max performs well in harsh environments like fog and rain.
Note: We also offer an additional handle to be able to hold your thermal camera and phone comfortably in one hand.
Model overview
| Model | X2 (Android / iOS ) | X3 | T2 Max (Android & iOS) |
|---|---|---|---|
| Focal length | 13 mm | 15 mm | 15 mm |
| IR resolution | 256 x 192 (49152 pixels) | 384 x 288 (110592 pixels) | 256 x 192 (49152 pixels) |
| NETD | ≤ 40 mK | ≤ 25 mK | ≤ 15 mK |
| Frame rate | 50 Hz | 60 Hz | 50 Hz |
| Detection range | 900 m | 1500 m | 1500 m |
| Price |
Specifications
| Temperature range | 0 - 80 °C |
| FOV | 11.7 x 8.8° |
| Display | External |
| Colour palettes | White Bird / Black Bird / White Hot / Black Hot / Iron Red / Red Hot / Night Vision |
| Magnification | 15X digital zoom |
| Battery | Up to 18 hours |
| Dimensions | 39 x 38 x 31 mm |
| Weight | 41.7 g (400g with handgrip) |
Accessories
The Thermal Master T2 Max comes by default with:
- USB-C extension cord
- USB-C to Lightning adapter
- Carry bag (camera)
Pros and cons
- Compatible with Android and iOS
- NETD of 15mK
- 50Hz refresh rate
Downloads
| TM T2 Max datasheet |  (4.58 MB) | Download |
| TM T2 Max user manual | (2.63 MB) | Download |
