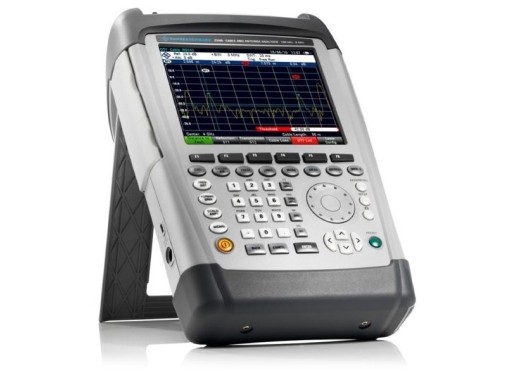

R&S ZVH8 handheld cable and antenna analyser
Details
The R&S ZVH8 cable and antenna analyser belongs to the ZVH series of portable cable and antenna analyzers. It features a durable design specifically suited for field use and is designed for the installation and upkeep of antenna systems. The ZVH8 is equipped with a frequency range of 100kHz to 8GHz. The R&S Analyser ZVH can be remotely controlled using the free R&S InstrumentView app. You can set up measurement configurations in advance, or analyse data easily on your PC afterwards. In addition, you have the option to use the free MobileView app on your smartphone or tablet for remote control.
For some features, licenses are required. Please check the datasheet and contact us for more information.
Model overview
| Model | ZVH4 | ZVH8 |
|---|---|---|
| Frequency range | 100 kHz ~ 3.6 GHz | 100 kHz ~ 8 GHz |
| Price |
Specifications
| Frequency resolution | 1 Hz |
| Dynamic range | 100 dB (typ.) |
| Output power | -40 dBm ~ 0 dBm (nom.) |
| Integrated measuring gates | 2 |
| Standard measurement functions | Reflection measurement, Cable fault location, One-port cable loss measurement |
| Display | 6.5" colour LCD |
| Dimensions | 194 x 300 x 69 mm |
| Weight | 3 kg |
Accessories
The ZVH8 comes with:
- Lithium-ion battery pack (4.2 Ah)
- USB cable
- LAN cable
- Plug-in power supply
Pros and cons
- Portable
- Lightweight
Downloads
| R&S ZVH series data sheet |  (2.28 MB) | Download |
