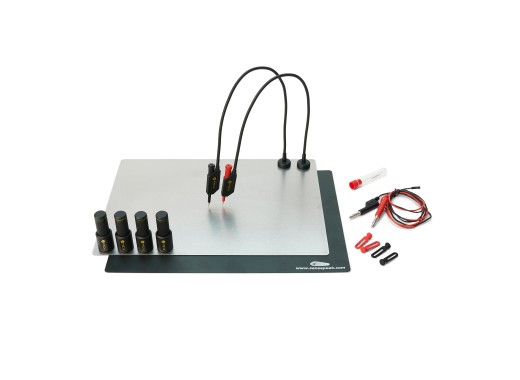

Sensepeek 6012 PCBite kit with 2x SQ10 probes for DMM
Details
This Sensepeek kit (6012) uses the SQ10 probes. The included Base plate has a matte side and a polished side. The polished side can help with looking at the other side of the pcb, There is also a protective cover included. With the 4 PCbite and 2 SQ10 probes that has a magnetic foot so you can do hands-free measurments.
This product is the new version of Sensepeek SP10 kit
Specifications
The specifications for the SQ10 probes are listed in the table below.
| Bandwidth | 10 MHz |
| Rise time | 34 ns |
| Attenuation | 1:1 |
| Needle resistance | 0,02 Ω |
| Overvoltage protection | 200 V(DC/Peak AC) |
| Max. input voltage | ± 60 V(DC) / 30 V(AC RMS) |
| Max. DC current | 2 A |
| Probe tip diameter | 0,5 mm |
This kit includes:
- 1x large base plate
- 1x Insulation cover
- 4x PCBite holder
- 1x Set of yellow insulation washers for the PCBite holders
- 2x SQ10 probes (one with red and one with black probe head, and pin tipped needles)
- 1x pair of banana to dupont test wires
- 2x spare pin needle
- 1x Set of cable holders
Pros and cons
- Complete kit for hands-free measuring.
- Only 2 probes.
Downloads
| Sensepeek SQ10 Probes |  (896.5 KB) | Download |
| Sensepeek PCBite manual | (508.98 KB) | Download |
