Sensepeek 6011 SQ10 probes for DMM
Details

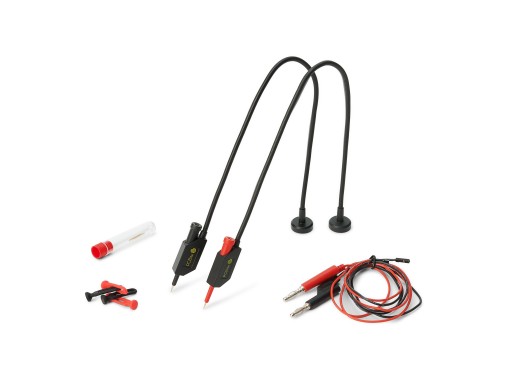

This Sensepeek (6011) product comes with 2 Sensepeek SQ10 (10 MHz probes), 2 extra test needles and 2 banana to dupont test wires.
These Sensepeek probes are truly the first of its kind. With its minimalistic design, probe isolation and spring-loaded test needle. These hands-free probes allow the user to easily make instant measurements and perform prolonged triggering sessions. The probe is very flexible and sturdy which saves time and frustration on getting the correct setup ready. The SQ10 comes with a powerful magnet in the base similar to all the other Sensepeek probes and holders, which makes the probe easy to place and reposition on the metal base plate. Unfortunately, the SQ10 probes only have one attenuation ratio of 1:1.
If you do not own a metal base plate yet, you can look at the Sensepeek 4007.
Specifications
The specifications for the SQ10 probes are listed in the table below.
| Bandwidth | 10 MHz |
| Rise time | 34 ns |
| Attenuation | 1:1 |
| Needle resistance | 0,02 Ω |
| Overvoltage protection | 200 V(DC/Peak AC) |
| Max. input voltage | ± 60 V(DC) / 30 V(AC RMS) |
| Max. DC current | 2 A |
| Probe tip diameter | 0,5 mm |
Accessories
The Sensepeek 6011 comes with:
- 2 x Sensepeek SQ10 probes
- 2 x Extra test needles
- 1 x Set of cable holders
- 2 x Banana to dupont test wires
Pros and cons
- Easy to replace probe tip.
- Flexible with a magnetic base
- Enables hands-free operation
Downloads
| Sensepeek SQ10 Probes |  (896.5 KB) | Download |
