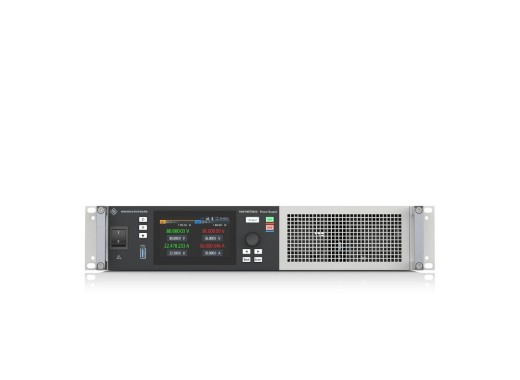

Rohde & Schwarz NGT3622 power supply
Details
The Rohde & Schwarz NGT3622 is a high-performance power supply for automated testing applications, with up to 80V and 50A per channel. The NGT3600-series power supplies can also be combined with up to 6 outputs in series/parallel for more demanding applications that require higher voltage/current. Furthermore, the power supply supports long-term high-resolution (1mV/0.1mA) data measurement and logging, with timestamps and export to a CSV file. Lastly, using the arbitrary function, it is possible to simulate real-world power scenarios such as faulty conditions and power surges for extensive stress testing and benchmarking.
This is the 2-channel model, which supports combining the two channels to achieve 160V in serial operation and 100A in parallel operation.
Model overview
| Model | NGT3621 | NGT3622 |
|---|---|---|
| Channels | 1 | 2 |
| Power | 1800W | 3600W |
Specifications
| Output switch | Yes |
| Voltage range | 2 - 80 V (per channel) |
| Current range | 0 - 50 A (per channel) |
| Programming Resolution | 1 mV / 1 mA |
| Readback Resolution | 1 mV / 0.1 mA |
| Protection | OPP, OCP, OVP, OTP, safety limit |
| Interfaces | USB host/device, LAN, digital I/O |
| Display | 4.3" TFT |
| Dimensions | 481 x 88 x 565 mm |
| Weight | 18.5 kg |
Accessories
The NGT3622 comes with:
- 1x AC terminal block plug
- 1x 8-pin digital I/O plug
- 1x Cable cover
- 1x Cable gland with M25 lock nut
- 2x Output terminal block plug
- 2x Share bus terminal block plug
- 2x Remote sense terminal block plug
- 2x Ferrite core
Pros and cons
- Data logging
- Combinable up to 6 outputs
- Arbitrary function
Downloads
