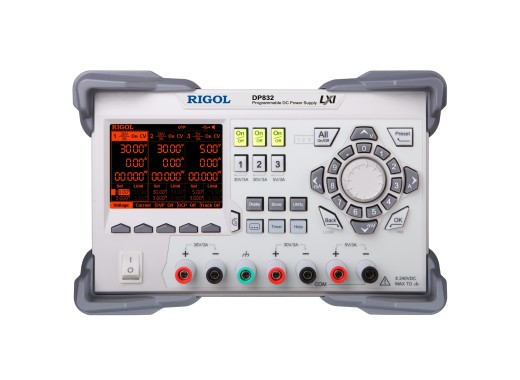

Rigol DP832 power supply
Promotion! This product is temporarily reduced in price until August 31st 2026!
Details
The Rigol DP832 belongs to the Rigol DP800 series and has 3 channels. Two channels can measure a voltage of 0-30V and a current of 0-3A. The third channel can measure a voltage of 0-5V and a current of 0-3A. The power supply has a USB Host and USB Device.
The Rigol DP800 series power supplies have a good price/quality ratio. The power supplies are accurate and have a power of 195W. They also are equipped with a clear color display where the built-in voltage, current, and power measurements are displayed. In addition, the power supplies can be programmed by using a PC.
Models
The -A versions of these power supplies are the same but additionally come with an improved resolution and some extra interface options.| Model | DP811 | DP813 | DP821 | DP822 | DP831 | DP832 |
|---|---|---|---|---|---|---|
| Outputs | 1 | 1 | 2 | 2 | 3 | 3 |
| Power | 200W | 200W | 140W | 180W | 160W | 195W |
| Voltage | Range 1: 0-20V Range 2: 0-40V |
Range 1: 0-8V Range 2: 0-20V |
CH1: 0-60V CH2: 0-8V |
CH1: 0-20V CH2: 0-5V |
CH1: 0-8V CH2: 0-30V CH3: 0-(-30V) |
CH1: 0-30V CH2: 0-30V CH3: 0-5V |
| Current | Range 1: 0-10A Range 2: 0-5A |
Range 1: 0-20A Range 2: 0-10A |
CH1: 0-1A CH2: 0-10A |
CH1: 0-5A CH2: 0-16A |
CH1: 0-5A CH2: 0-2A CH3: 0-2A |
0-3A |
| Resolution | 10 mV / 10 mA | 10 mV / 10 mA | CH1: 10mV/1mA CH2: 10mV/10mA |
10 mV / 10 mA | 1 mV / 1 mA | 10 mV / 1 mA |
| USB Host, USB Device | yes |
yes |
yes |
yes |
yes |
yes |
| Price | ||||||
| -A models | DP811A | DP813A | DP821A | DP822A | DP831A | DP832A |
| Resolution | 1 mV / 1 mA | 1 mV / 1 mA | 1 mV / 0.1 mA | 1 mV / 1 mA | 1 mV / 0.1 mA | 1 mV / 1 mA |
| LAN, RS232, digital I/O | yes |
yes |
yes |
yes |
yes |
yes |
| Price |
Specifications
| Display | 3.5" TFT |
| Dimensions | 239 x 157 x 418 mm |
| Weight | 10.3 kg |
Options
| Software resolution | With this software option, the Rigol DP832 power supply will get a more accurate resolution. | |
| RS232/LAN extension | Activates the RS232/LAN ports on the power supply |
Accessories
The Rigol DP832 comes with the following accessories:
- Power cord
- USB cable
- Quick start guide
Pros and cons
- Standaard voorzien van OVP/OCP/OTP
Downloads
| DP800 datasheet |  (2.52 MB) | Download |
| DP800 user guide | (3.2 MB) | Download |
