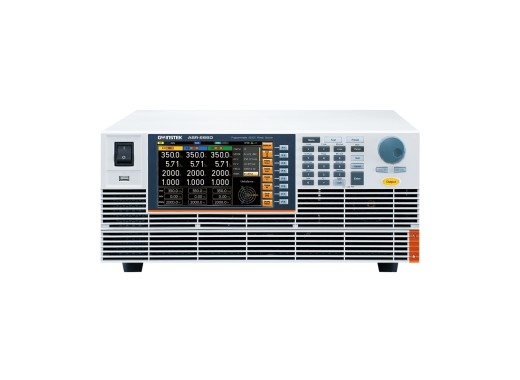

GW Instek ASR-6660 programmable power supply
Details
The GW Instek ASR-6660 programmable power supply is part of the high-end ASR-6000 series. This power supply is built to handle whatever you may throw at it, from being used in a server handling critical information with no room for downtime to scientific research. While the ASR-6660 requires a three-phase AC input, it provides versatile AC/DC power outputs up to 6600W AC/DC.
The supply also provides programmable output impedance adjustment, dual-channel voltage/current output monitoring, supports 1P2W-, 1P3W-, and 3P4W-output. It also has a powerful arbitrary waveform editing and output function, capable of editing and outputting tens of thousands of waveforms and 100th-order harmonic measurement function. This power supply can emulate more diverse power environment changes, such as balanced three-phase and unbalanced three-phase, phase loss, and features a multi-channel output function that can test up to three DUTs at the same time. The ASR-6660 can be paralleled with additional units to achieve power levels up to 39.6kVA.
Model Overview
| Model | ASR-6500 | ASR-6660 |
|---|---|---|
| Total power | 5000 W | 6600 W |
| Price |
Available parallel configurations:
The ASR-6500 and ASR-6660 can be configured in parallel rack systems for higher power requirements:
- 10 kVA (ASR-6500-10, two ASR-6500 units)
- 13.2 kVA (ASR-6660-13.2, two ASR-6660 units)
- 15 kVA (ASR-6500-15, three ASR-6500 units)
- 19.8 kVA (ASR-6660-19.8, three ASR-6660 units)
- 26.4 kVA (ASR-6660-26.4, four ASR-6660 units)
- 33 kVA (ASR-6660-33, five ASR-6660 units)
- 39.6 kVA (ASR-6660-39.6, six ASR-6660 units)
Please contact us if you are interested in parallel rack configurations or require a quotation for higher power systems.
Specifications
| Outputs | 1 |
| Output modes | 10 |
| Voltage range | AC: 200 V - 240 V DC: -500 V - 500 V |
| Current range | CH1: 0 - 66 A (100V range) CH1: 0 - 33 A (200V range) |
| Resolution | 0.01 A / 0.1 A |
| Ripple | 0.5 Vrms / 1 Vrms |
| Protection | UVP, OVP, OCP, OTP, OPP, Fan Fail, Peak and RMS Current Limit |
| Interfaces | RS-232C, USB, LAN |
| Display | 7" TFT-LCD |
| Dimensions | 430 x 176 x 590 mm |
| Weight | 45 kg |
Accessories
The ASR-6660 is supplied with:
- Input terminal cover
- Output terminal cover
- Copper plate for 1P output (Mark 4)
- GRA-451-E Rack mount adapter (EIA)
- USB cable
- Power cord
- Declaration of traceable calibration
