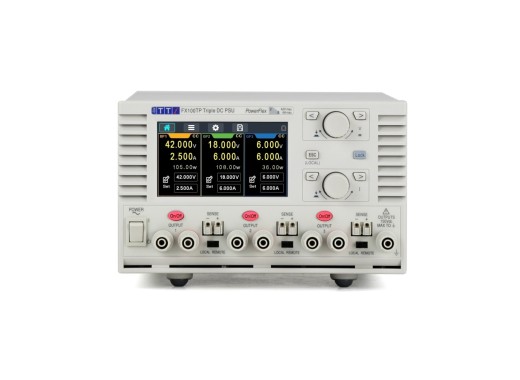

Aim-TTi FX100TP power supply
Details
The Aim-TTi FX100TP power supply is a tripple-channel DC supply with a total power of 246W (2x 105W per channel, 1x 36W channel), a maximum voltage of up to 42V (2x 42V, 1x 6V) and a maximum current of up to 6A per output. This model of Aim is a high-quality power supply, delivering low output noise and ripple, a high setting resolution of 1mV and 1mA, and variable OVP and OCP protection on all three outputs, all fitted in a rigid design.
The FX100TP features 25 setting memories, selectable voltage tracking and current meter averaging, and switchable remote sense on both outputs. The unit contains an LCD panel for setting and measured output metering. It also has a touchscreen and rotor controls for controlling all parameters on screen, and it has individual or linked on/off controls for regulating the output. The front panel has a lock feature, preventing accidental adjustments when locked. Furthermore, this unit is equipped with a half-rack 3U case for bench use, has a USB interface which supports SCPI commands, and works with the freely downloadable Test Bridge control software.
Model overview
The Aim-TTi FX series also features a dual-channel power supply. The differences between the models are compared here.
| Model | FX100DP | FX100TP |
|---|---|---|
| Number of outputs | 2 | 3 |
| Voltage range | Output 1 and 2: from 0 to 42 V | Output 1 and 2: from 0 to 42 V, Output 3: from 0 to 6 V |
| Current range | 1 mA to 6 A | 1 mA to 6 A |
| Power per output | Output 1 and 2: 105 W | Output 1 and 2: 105 W, Output 3: 36 W |
| Total power | Up to 210 W | Up to 246 W |
Specifications
| Output switch | Each channel | |
| Current type | DC | |
| Resolution | 1 mV / 1 mA | |
| Ripple | 2 mV / 2 mA | |
| Number of setting memories | 25 | |
| Protection | OVP, OCP | |
| Interfaces | USB 2.0, SCPI commands supported | |
| Screen type | LCD, colour, touchscreen | |
| Screen size | 4.3 inch | |
| Dimensions | 214 x 140 x 300 mm | |
| Weight | 4 kg |
Accessories
The Aim-TTi FX100TP comes with:
- Power cable
Pros and cons
- Compact form factor
- Individual or linked output switch
- Touchscreen
- Third channel provides less power
Downloads
| Aim-TTi FX series datasheet |  (3.75 MB) | Download |
| Aim-TTi FX series user manual | (2.58 MB) | Download |
