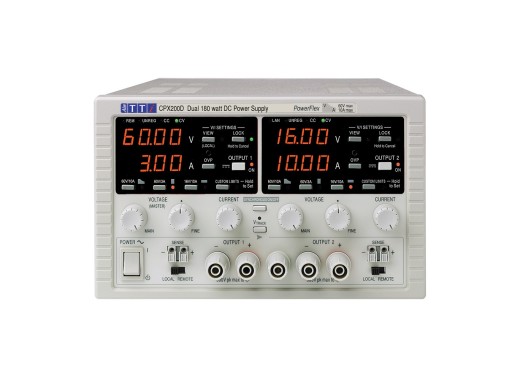

Aim-TTi CPX200D bench power supply
Details
The Aim-TTi CPX200D is a dual-output bench power supply with a total power of 360W, a voltage range of 0-60V and a current range of 0-10A. This power supply offers variable voltage and current combinations within a maximum power envelope. Moreover, the outputs can be wired in series or parallel to achieve a voltage of up to 120V or a current of up to 20A. Features of the CPX200D include constant voltage or constant current operation, low output noise, good transient response and independent outputs or isolated voltage tracking.
Model overview
| Model | CPX200D | CPX200DP | CPX400D | CPX400DP |
|---|---|---|---|---|
| Outputs | 2 | 2 | 2 | 2 |
| Total power | 360 W | 360 W | 840 W | 840 W |
| Voltage range | 0 - 60 V | 0 - 60 V | 0 - 60 V | 0 - 60 V |
| Current range | 0 - 10 A | 0 - 10 A | 0 - 20 A | 0 - 20 A |
| Interfaces | None | RS-232, USB, LAN (LXI), GPIB, duplicate rear output terminal |
None | RS-232, USB, LAN (LXI), GPIB, duplicate rear output terminal |
| Price |
Specifications
| Resolution | CH1: 1mV/1mA CH2: 1mV/1mA |
| Ripple | Typically <1mV RMS, <15mV pk-pk, (3mV RMS max.) in CV mode |
| Protection | OCP, OVP, OTP |
| Dimensions | 210 x 130 x 377 mm |
| Weight | 6.3 kg |
Accessories
The CPX200D comes by default with:
- Power cable
Pros and cons
- High current capacity within a compact power supply
Downloads
| Datasheet CPX series |  (1.9 MB) | Download |
