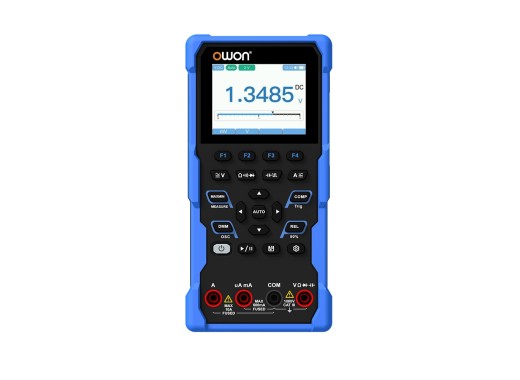

Owon HDS160 handheld oscilloscope multimeter
Details
The OWON HDS160 is a versatile 2-in-1 device featuring an oscilloscope and multimeter, making it an essential tool for a wide range of applications. The multimeter features 60.000 counts, and the oscilloscope has a 1MHz bandwidth with a 5MSa/s sample rate. The relatively low oscilloscope bandwidth means it is generally more used to visualise signals rather than performing exact measurements. This instrument can automatically calculate and test various parameters, such as Vmax, Vmin, Vp-p, Vavg, Vrms, and frequency. It operates as a True-RMS device and also includes an intelligent probe detection, which seamlessly switches measurement values based on the probe's inserted position to prevent any operational errors that could potentially damage the instrument. Additionally, it has a 2.8-inch IPS display and features an environmentally adaptive display with high brightness, high contrast dual-theme mode to ensure a clear view in both bright and dark environments.
Model overview
| Model | HDS120 | HDS160 |
|---|---|---|
| Display resolution | 20.000 counts 4 ½ digits | 60.000 counts 5 ¼ digit |
| Frequency | 1 Hz – 20 MHz | 1 Hz – 60 MHz |
| Max. resistance | 100 MΩ | 60 MΩ |
| Max. capacitance | 20 mF | 60 mF |
| Price |
Specifications
| Multimeter | |
| Max. AC voltage | 750 V |
| Max. DC voltage | 1000 V |
| Max. AC current | 10 A |
| Max. DC current | 10 A |
| True-RMS |
Yes
|
| Other functions | Diode, continuity, min/max record, peak/data hold, auto power-off, relative measurements |
| Oscilloscope | |
| Bandwidth | 1 MHz |
| Channels | 1 |
| Sample rate | 5 MSa/s |
| Vertical scale | 30 mV/grid - 500 V/grid |
| Interfaces | USB |
| Display | 2.8" IPS LCD |
| Battery | 18650 lithium |
| Dimensions | 93 x 41.5 x 188 mm |
| Weight | 0.33 kg |
Accessories
The HDS160 comes with:
- USB cable
- Multimeter leads
- Soft bag
Downloads
| Owon HDS100 user manual |  (2.38 MB) | Download |
| Owon HDS100 quick guide | (1.97 MB) | Download |
