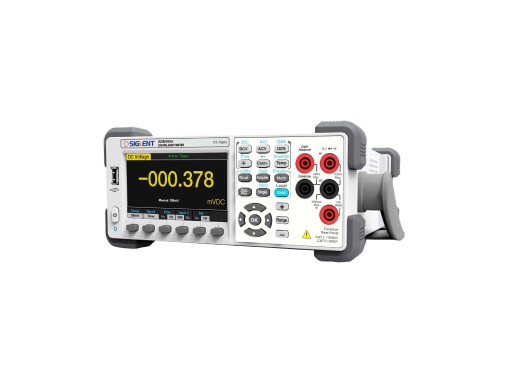

Siglent SDM3055 with 12-channel multiplexer
Details
The Siglent SDM3055-SC is a 5.5 digit multimeter specially designed to offer high precision (0.015%) at a good price. With the 4.3" colour TFT screen the multimeter is easy to read and with the built-in help functions it is easy to use. The built-in 1Gb storage provides enough space for all the storage that is necessary and can be accessed via USB or LAN. The SDM3055-SC multimeter uses multiple Math functions and image functions to simplify data analysis. An example of this is the display of histograms.
The functionality of the SDM3055-SC is extended by the colour screen. For example, the aforementioned histograms can be displayed on the screen, but also previous measurement results can easily be displayed in tables. Because the USB is on the front, it can easily be used.
The SDM3055 can be operated via USBTMC, but also offers the possibility to communicate with LabView of National Instruments. In addition, an SCPI programming manual is available which allows the multimeter to be controlled remotely.
Are you looking for a model without the 12-channel multiplexer? Then you might want to have a look at the Siglent SDM3055
Models
| SDM3055 | SDM3055-SC | |
|---|---|---|
| Includes 12-channel multiplexer | No |
Yes |
| Price |
Specifications
| DC accuracy | 0.015% |
| Max. DC voltage measurement scale | 1000 V |
| Max. DC current measurement scale | 10 A |
| Max. AC voltage measurement scale | True-RMS, 750V |
| Max. AC current measurement scale | True-RMS, 10 A |
| Max. resistance | 100 MΩ |
| Max. capacitance | 10000µF |
| Display | 4.3" TFT LCD (480 x 272) |
| Memory | 1 GB Sand Flash |
| Connectivity | USB, LAN |
| Dimensions | 282 mm x 260 mm x 105 mm |
| Weight | 3.33 kg |
Options
By means of the following options you can add additional features.
| USB to GPIB | With this option, you can control the function generator through GPIB. | |
| Current shunt | With this option, you can expand the measurement current range of the multimeter. |
Accessories
Multimeters of the SDM3055 series are supplied with:
- Power cord
- Two measuring cables and two crocodile clamps
- USB cable
- Quick start guide
- Warranty certificate
Downloads
| SC1016 datasheet |  (1.29 MB) | Download |
