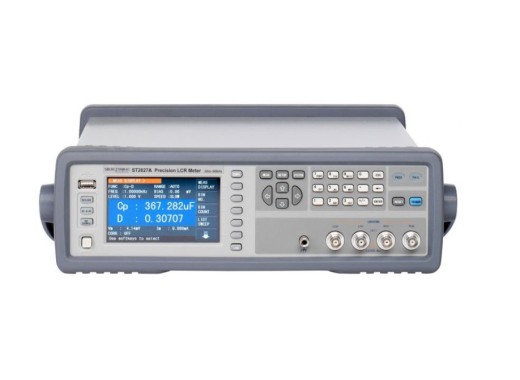

Sourcetronic ST2827A precision LCR meter

The Sourcetronic ST2827A precision LCR meter is an extensive bench-top meter. This meter can take measurements between 20 Hz and 300 kHz. Furthermore, the basic accuracy of this meter is 0.05%, which means that the LCR values can be measured very accurately. The ST2827A has an internal DC bias source, transformer parameter test function, list-sweep function and, makes it possible to select the resistance (30Ω / 50Ω / 100Ω).

The LCR meter displays the measured results clearly on the 7" TFT LCD color display. Two measurements can be shown at the same time, this makes the meter easy in use. Furthermore, the meter has several interfaces. a calibratie function, and a built-in comparator with which results can be counted and sorted.

Model overview

Model	ST2827A	ST2827C
Bandwidth	20 Hz - 300 kHz	20 Hz - 1 MHz
Price	2690 €2,690.00 Excl. VAT	5290 €5,290.00 Excl. VAT

Specifications

Range of measurement parameters
|Z|, R, X, DCR	0.00001 Ω - 99.9999 MΩ
|Y|,G, B	0.00001 nS - 99.9999 S
C	0.00001 pF - 9.99999 F
L	0.00001 µH - 9.9999 kH
D	0.00001 - 9.99999
Q	0.0001 - 99999
θ(DEG)	-179.999° - 179.999°
θ(RAD)	-π - π
Δ%	-999.999 % - 999.999 %

Remaining specifications
Precision	0.05 %
Test signal	10 mV - 2 Vrms 100 µA - 20 mA
Resolution	10 mHz
Transformer test parameters	DCR1, DCR2, M, N, 1/N, Phase, La, Lb, Lk, C, balance test
Range mode	Auto, hold
Trigger mode	Internal, external, manual, BUS
Measuring speed	13 ms - 187 ms (3 speedmodi)
Display	800 x 480 TFT LCD color screen (7-inch)
Interfaces	LAN-LXI, RS232C, I/O Handler, USB, GPIB (optional*)
Internal nonvolatile memory	100 sets of LCRZ setting files 201 times test results
Dimensions	369 x 108 x 408 mm
Weight	5 kg

*There is a possibility to equip the ST2827A with a GPIB interface at an additional cost. If you are interested in this, please contact us!

Accessories

The Sourcetronic ST2827A precision LCR meter will be delivered including:

• ST26048 4 terminal test fixture
• ST26047 4 terminal test fixture
• ST26011B 4 terminal Kelvin test clip leads
• ST26010 Gilded shorting plate
• ST26038 Transformer test fixture
• Power cable
• Factory calibration certificate
