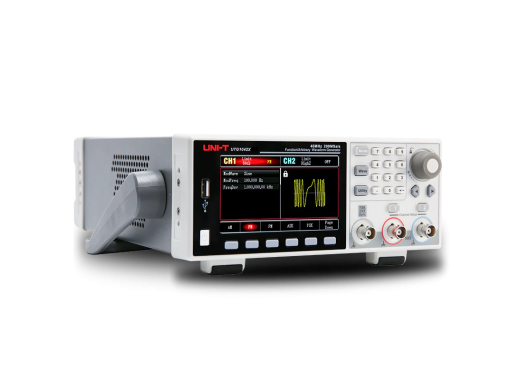

UNI-T UTG1042X function generator
Details
The UNI-T UTG1042X is a function generator in the UTG1000X series with a maximum frequency output of 40MHz and a maximum output amplitude of 20Vpp. All the models have 2 channels and a vertical resolution of 16 bits. The function generator has a precise and stable waveform output with a resolution as low as 1μHz. The UTG1000X series provides multiple modulation modes and it includes 6 standard waveforms. The UTG1000X series are high-performance and multi-functional function generators.
There is also free PC software available for the UTG1000X series.
The default 3-year warranty can be extended to 5 years by registering your instrument.
Model overview
UNI-T offers 3 models in the UTG1000X series, differing in frequency output and power amplifier:| Model | UTG1022X | UTG1022X-PA | UTG1042X |
|---|---|---|---|
| Max. output frequency | 20 MHz | 20 MHz | 40 MHz |
| Power amplifier module | No |
Yes |
No |
| Price |
Specifications
| Channels | 2 |
| Vertical resolution | 16 bits |
| Sample rate | 200 MSa/s |
| Frequency resolution | 1 μHz |
| Amplitude range | 20 Vpp |
| Waveform length | 4 kpts |
| Modulation | AM, FM, PM, FSK, ASK, PSK, PWM, Frequency sweep, Burst |
| Built-in functions | Sine, Square, Pulse, Ramp, Gauss |
| Output impedance | 50 Ω |
| Interfaces | USB host/device |
| Display | 4.3" TFT LCD (480x272) |
| Dimensions | 215 x 103 x 316 mm |
| Weight | 2.2 kg |
Accessories
The UNI-T UTG1042X comes with:- Power cord
- USB cable
- BNC to BNC cable
- BNC to alligator clip cable
Pros and cons
- 16 bit
- Maximum function length of only 4kpts
Downloads
| UNI-T UTG1000X datasheet |  (1.25 MB) | Download |
