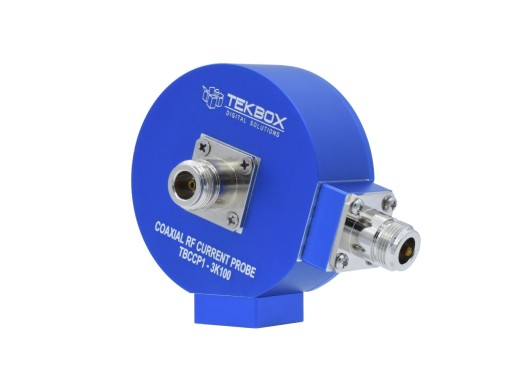

The TBCCP1-3K100 from the Tekbox TBCCP1 series is a snap-on RF current probe designed for EMC pre-compliance testing. This probe has a 3 dB bandwidth from 3 kHz to 100 MHz and a very flat response. The TBCCP1-3K100 probe can be used for measurement of RF currents in coaxial cables or as a transducer for passive loop antennas.
Model overview
| Model
| TBCCP1-2K70
| TBCCP1-3K100
| TBCCP1-400K600
|
| Characterized frequency range
| 10 Hz - 100 MHz
| 10 Hz - 100 MHz
| 10 Hz - 600 MHz
|
| Transfer impedance
| 0 dBΩ
| 5 dBΩ
| 22 dBΩ
|
| Price
|
945
€945.00
Excl. VAT
|
889
€889.00
Excl. VAT
|
889
€889.00
Excl. VAT
|
Specifications
| 3 dB bandwidth |
3 kHz to 100 MHz |
| Type connector |
N Female |
| Maximum primary current (RF) |
12 A |
| Maximum core temperature |
125 ℃ |
| Weight |
400 g |
Dimensions |
76 mm x 102 mm x 69 mm |
Pros and cons
- Affordable EMC pre-compliance test equipment
- Can be used as a transducer for passive loop antennas
