Tekbox TBWA2 wideband amplifier
Details

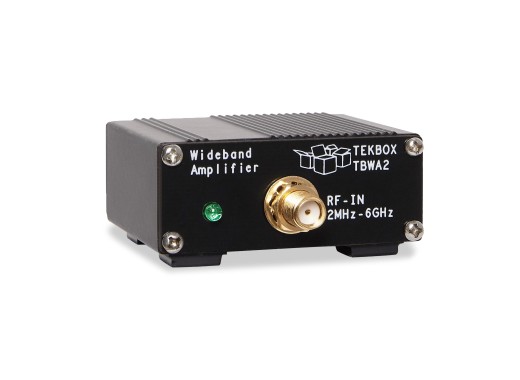

The Tekbox TBWA2 wideband amplifier is available in 20dB and 40dB gain and has a frequency range of 1 MHz - 6 GHz. Compared to the TBDA1, these amplifiers have a greater frequency range making them suitable for boosting high frequency signals in EMC pre-compliance testing.
The amplifiers can also be bought in a set for a significant discount.
Specifications
| Model | TBWA2/20dB | TBWA2/40dB |
|---|---|---|
| Price | ||
| Maximum input power | +10 dBm | -10 dBm |
| Gain | 14.8 dB @ 1 MHZ 20.2 dB @ 10 MHZ 20.2 dB @ 100 MHZ 20 dB @ 500 MHZ 19.8 dB @ 1 GHZ 19 dB @ 2 GHZ 17.6 dB @ 3 GHZ 17.4 dB @ 4.5 GHZ 15.4 dB @ 6 GHZ |
30 dB @ 1 MHz 40.2 dB @ 10 MHZ 40.2 dB @ 100 MHZ 40 dB @ 500 MHZ 39.5 dB @ 1 GHZ 37.6 dB @ 2 GHZ 36.4 dB @ 3 GHZ 34.6 dB @ 4.5 GHZ 34.7 dB @ 6 GHZ |
| 1 dB output compression point | +20 dBm @ 2 GHz | +20 dBm @ 2 GHz |
| Reverse isolation | 23 dB | 40 dB |
| Noise figure | 4.5 ... 5 dB @ 2 GHz | 5 dB @ 2 GHz |
| Nominal supply voltage | 4.5 – 5V, typ. 110mA, Mini-USB-B connector | 4.5 – 5V, typ. 210mA, Mini-USB-B connector |
| Maximum supply voltage | 5.5 V | 5.5 V |
| Connectivity | SMA-female N-male(using included adapter) |
SMA-female N-male(using included adapter) |
| Impedance | 50 Ω input, 50 Ω output | 50 Ω input, 50 Ω output |
Accessories
The Tekbox TBWA2 comes delivered with:
- 1x SMA-male to SMA-male cable (25 cm)
- 1x SMA-male to N-male cable (75 cm)
- 1x SMA-female to N-male coaxial adapter
- Measurement plot
- USB cable
Pros and cons
- Small form factor
- Suitable for EMC pre-compliance testing
