Tekbox TBWADA amplifier bundle
Details

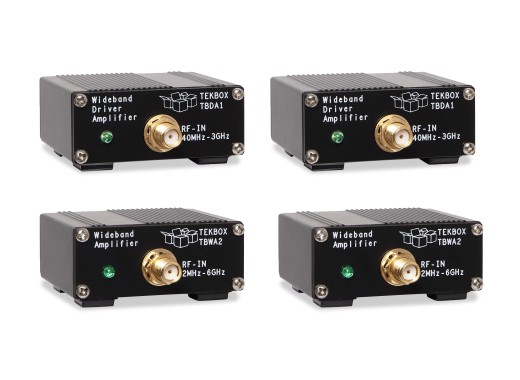

The TBWADA bundle from Tekbox consists of 4 EMC pre-compliance suitable amplifiers. The TBWA2 with 20 dB and 40 dB gain are suitable for boosting signals picked up by EMC near field probes because of their high frequency range. The TBDA1 with 14 dB and 28 dB gain are, because of the higher output power, suitable for boosting low power RF signals.
The cost of this bundle is considerably cheaper than buying all of the amplifiers individually.
Specifications
| Model | TBWA2/20dB | TBWA2/40dB | TBDA1/14dB | TBDA1/28dB |
|---|---|---|---|---|
| Frequency range | 1 MHz - 6 GHz | 1 MHz - 6 GHz | 40 MHz - 3 GHz | 40 MHz - 3 GHz |
| Maximum input power | +10 dBm | -10 dBm | +20 dBm | +6 dBm |
| Gain | 14.8 dB @ 1 MHZ 20.2 dB @ 10 MHZ 20.2 dB @ 100 MHZ 20 dB @ 500 MHZ 19.8 dB @ 1 GHZ 19 dB @ 2 GHZ 17.6 dB @ 3 GHZ 17.4 dB @ 4.5 GHZ 15.4 dB @ 6 GHZ |
30 dB @ 1 MHz 40.2 dB @ 10 MHZ 40.2 dB @ 100 MHZ 40 dB @ 500 MHZ 39.5 dB @ 1 GHZ 37.6 dB @ 2 GHZ 36.4 dB @ 3 GHZ 34.6 dB @ 4.5 GHZ 34.7 dB @ 6 GHZ |
12 dB @ 25 MHZ 13.8 dB @ 50 MHZ 14.2 dB @ 100 MHZ 14.2 dB @ 500 MHZ 14.3 dB @ 1 GHZ 14.3 dB @ 1.5 GHZ 13.7 dB @ 2 GHZ 14.8 dB @ 2.5 GHZ 14.6 dB @ 3 GHZ |
26 dB @ 25 MHz 28.4 dB @ 50 MHZ 28.6 dB @ 100 MHZ 28.6 dB @ 500 MHZ 28.8 dB @ 1 GHZ 28.3 dB @ 1.5 GHZ 27.2 dB @ 2 GHZ 28.5 dB @ 2.5 GHZ 28.9 dB @ 3 GHZ |
| 1 dB output compression point | +20 dBm @ 2 GHz | +20 dBm @ 2 GHz | +21.5 dBm @ 40 MHz +22.5 dBm @ 2 GHz |
+21.5 dBm @ 40 MHz +22.5 dBm @ 2 GHz |
| Reverse isolation | 23 dB | 40 dB | -20 dB | -40 dB |
| Noise figure | 4.5 ... 5 dB @ 2 GHz | 5 dB @ 2 GHz | 3 ... 4 dB | 3.1 ... 4.1 dB |
| Nominal supply voltage | 4.5 – 5V, typ. 110mA, Mini-USB-B connector | 4.5 – 5V, typ. 210mA, Mini-USB-B connector | 4.5 – 5V, typ. 110mA, Mini-USB-B connector | 4.5 – 5V, typ. 210mA, Mini-USB-B connector |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Connectivity | SMA-female | SMA-female | SMA-female | SMA-female |
| Impedance | 50 Ω input, 50 Ω output | 50 Ω input, 50 Ω output | 50 Ω input, 50 Ω output | 50 Ω input, 50 Ω output |
| Price |
Accessories
The Tekbox TBWADA bundle comes delivered with:
- 4x SMA-male to SMA-male cable (25 cm)
- 4x SMA-male to N-male cable (75 cm)
- 4x SMA-female to N-male coaxial adapter
- 4x Measurement plot
- 4x USB cable
Pros and cons
- Complete set of amplifiers
- EMC pre-compliance suitable
- Considerably cheaper than buying all of the amplifiers individually
Downloads
| Tekbox TBWA2 wideband RF amplifier manual |
 (364.68 KB) |
Download |
| Tekbox TBDA1 manual |
(373.26 KB) |
Download |
