Tekbox TBST shielded tent
Details

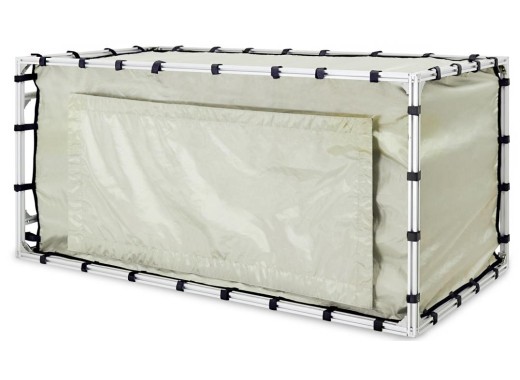

Tekbox TBST shielded tents are designed to shield your EMC measurement setup from environmental noise, which may influence the measurement. The TBST tents consist of a rigid aluminium frame with a double layer of conductive shielding, with an opening on the longest side for placing equipment.
The tents are available in three sizes: 200cm, 124cm and 86cm, with the 86cm variant providing space for most Tekbox TEM cells such as the TBCT0/1/2 TEM cell and all Tekbox LISNs. The 200cm and 124cm variants are suitable for all Tekbox EMC equipment thanks to their larger size.
The side of the tent contains a mains filter (optional for the 86cm variant), two AC/DC filters and four coaxial connections. The opening of the tent is sealed by conductive Velcro.
Are you looking for a cheaper solution where a rigid frame is not required? Then take a look at the Tekbox shielded bags.
Model overview
| Model | TBST86/49/45/1-B | TBST86/49/45/2-B | TBST120/60/2-B | TBST200/100 |
|---|---|---|---|---|
| Outside dimensions | 86 x 48 x 48 cm | 86 x 48 x 48 cm | 120 x 60 x 60 cm | 204 x 104 x 100 cm |
| Opening dimensions | 40 x 22 cm | 40 x 22 cm | 85 x 35 cm | 130 x 46 cm |
| Attenuation | 50 - 70 dB (DC up to 6 GHz) | 50 - 70 dB (DC up to 6 GHz) | 50 - 70 dB (DC up to 6 GHz) | ~50 dB (10 MHz to 6 GHz) |
| Mains filter | No |
Yes |
Yes |
Yes |
| Weight | 6.7 kg | 8.7 kg | 10.8 kg | 17.0 kg |
| Price |
Specifications
| Shielding | 2 layers of conductive fabric |
| Seal | Conductive velcro |
| Frame | Yes |
| Connections | 3x N-female, 1x BNC-female |
Accessories
Tekbox TBST shielded tents are standard delivered including:
- 1x RF RG223 N-male to N-male cable (1.0m)
- Repair patch fabrics
Pros and cons
- Rigid frame
- Easily place equipment
- More expensive than the shielded bags
Downloads
| Tekbox TBST shielded tent manual |
 (1.11 MB) |
Download |
