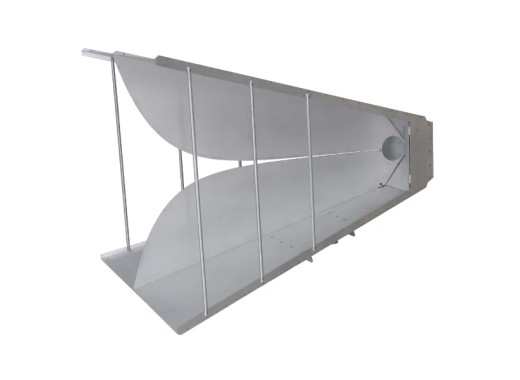

The TBMA9 is a broadband, double-ridged MIL-STD horn antenna, which provides a stable linear polarisation for frequencies between 200MHz and 2000MHz. This antenna is ideal for radiated emissions and immunity measurements in EMC pre-compliance testing. Furthermore, the TBMA9 has a <2:1 VSWR rating for frequencies over 270MHz, a continuous power handling of 500W, and a peak power handling of 800W. There is a 22mm mounting shaft present, which can be used to mount the antenna on a tripod. We recommended the TBTP6 tripod.
Specifications
| Type of antenna | Double-ridged MIL-STD horn |
| Frequency range | 200 MHz - 2000 MHz |
| Nominal impedance | 50 Ω |
|
Voltage standing wave ratio (VSWR) | < 2:1 (f > 270 MHZ) |
| Isotropic gain at 3m spacing | 4.80 dBi - 8.86 dBi |
| Antenna factor at 3m spacing | 11.27 dB/m - 30.13 dB/m |
| Maximum continuous input RF power | 500 W |
| Maximum peak input RF power | 800 W |
| Connector | N-type female |
| Dimensions | 94.8 x 95.2 x 70.3 cm |
| Weight | 16 kg |
