Tekbox TBMA12 hybrid antenna
Details

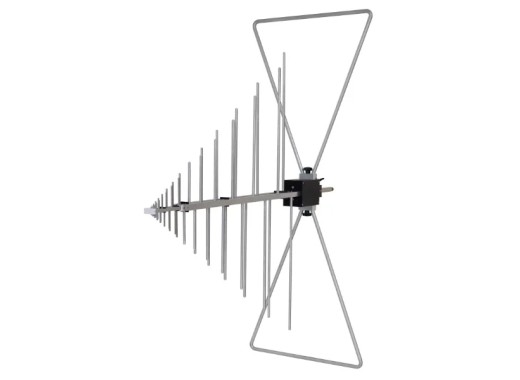

The TBMA12 is a hybrid measurement antenna, which combines a conical and log periodic antenna to achieve a flat wideband frequency response for EMC pre-compliance testing. The antenna features a 30MHz to 6000MHz frequency range and 130W continuous input power. The TBMA12 has a <3:1 VSWR rating for frequencies over 75MHz. There is a 22mm mounting shaft present, which can be used to mount the antenna on one of Tekbox's tripods, such as the TBTP5 or TBTP6.
Specifications
| Type of antenna | Hybrid |
| Frequency range | 30 MHz - 6000 MHz |
| Nominal impedance | 50 Ω |
| Voltage standing wave ratio (VSWR) | < 3:1 (f > 75 MHZ) |
| Isotropic gain at 3m spacing | -16.83 dBi - 8.16 dBi |
| Antenna factor at 3m spacing | 7 dB/m - 41 dB/m |
| Maximum continuous input RF power | 130 W |
| Connector | N-type female |
| Dimensions | 134.6 x 150.4 x 55.8 cm |
| Weight | 6.9 kg |
Accessories
The TBMA12 comes with:
- Carrying case
Downloads
| Tekbox TBMA12 user manual |  (1.17 MB) | Download |
