TekBox TBMA1-PAT adapter for tilting biconical antennas
Details

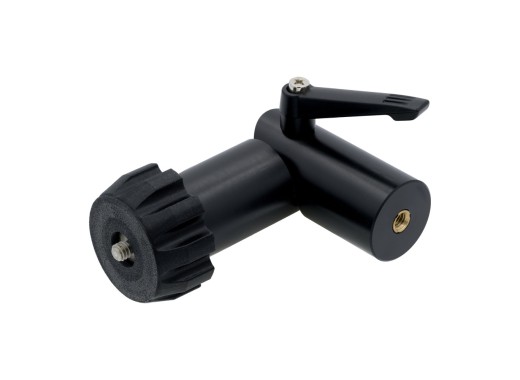

The Tekbox TBMA1-PAT is a tiltable antenna mounting adapter with a 1/4" thread on both sides. It sits between the tripod and the antenna and allows a biconical antenna such as the TBMA1B or TBMA1C to be tilted on the TBTP1, TBTP3, TBTP4 and TBTP5 tripods.
Because the antenna can be tilted in the adapter, the antenna can be aligned with the EUT without moving the tripod, which is useful for radiated emission measurements at close range and for antenna positioning at heights where the tripod itself cannot be adjusted.
The TBMA1-PAT is supplied as a single adapter, without tripod or antenna.
Specifications
| Type | Thread to thread, tiltable |
| Material | POM |
| Mounting thread | 1/4" |
| Compatible tripods | TBTP1, TBTP3, TBTP4, TBTP5 |
| Compatible antennas | TBMA1, TBMA1B, TBMA1C |
Downloads
| Tekbox TBMA1-PAT user manual |  (319.59 KB) | Download |
| Tekbox tripods datasheet | (760.96 KB) | Download |
