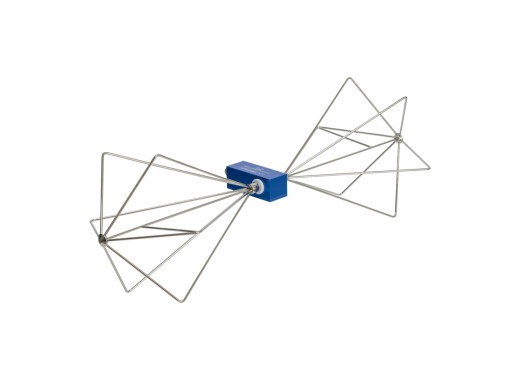

Tekbox TBMA1C biconical antenna
Details
The Tekbox TBMA1C is a passive biconical antenna designed for use in EMC pre-compliance testing.
The TBMA1C has a frequency range from 20MHz to 1GHz and has a directional pattern of a dipole.
It has a small and lightweight construction and is also protected against static charge build-up.
The TBMA1C is also able to generate a defined field strength with this antenna.
Furthermore, the antenna is protected against the build-up of static charge.
The antenna comes in an aluminium carrying case.
It does not come with a tripod; however, due to the standard 1/4" thread, it can easily be screwed to other stands such as the Tekbox TBTP2B or TBTP3 tripod.
Specifications
| Type of antenna | Passive biconical |
| Frequency range | 20 MHz - 1 GHz |
| Nominal impedance | 50 Ω |
| Max. continuous input power | 2 W |
| Isotropic gain | -38.46 - 1 dBi |
| Antenna factor | 14.19 - 40.56 dB/m |
| Voltage Standing Wave Ratio | < 2.66 |
| Tri-pod adapter thread | 1/4" |
| Connector | N-type |
| Antenna dimensions | 605 x 235 x 203 mm |
| Antenna weight | 0.58 kg |
| Carrying case dimensions | 630 x 310 x 270 mm |
| Carrying case weight | 4.4 kg |
Accessories
The TBMA1C comes with:
- Carrying case
Pros and cons
- Small, lightweight construction
Downloads
| Tekbox TBMA1C user manual |  (588.96 KB) | Download |
