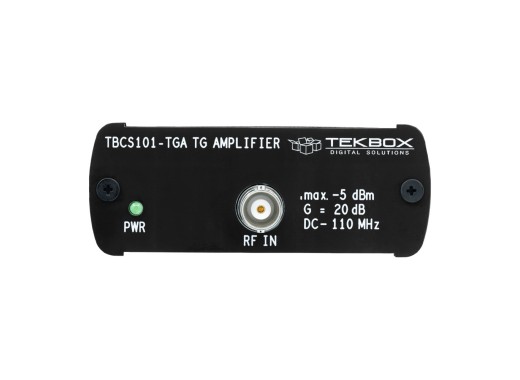

Tekbox TBCS101-TGA DC-coupled driver amplifier
Details
The Tekbox TBCS101-TGA is a DC-coupled amplifier designed for CS101 test setups. The TBCS101-TGA can also act as a general-purpose differential amplifier, and also specifically in combination with the Tekbox TBMR-110M measurement receiver. The amplifier has a gain of 20dB. Furthermore, it has a flat gain from 0-20MHz and a 3dB bandwidth of 40MHz and an output power of +15dBm.
Specifications
| Frequency range | 0 - 40 MHz |
| Gain | 20 dB |
| Input impedance | 50 Ω |
| Max. rating | +20 dBm (50 Ω) ± 1.5V DC (max. input rating) |
| Output impedence | 50 Ω |
| Output return loss | > 20 dB typ. |
| Connectivity | BNC-female |
| Power supply | 5 V USB-C |
| Dimensions | 82 x 33 x 80 mm |
| Weight | 100 g |
Accessories
The TBCS101-TGA comes by default with:
- USB-C cable
