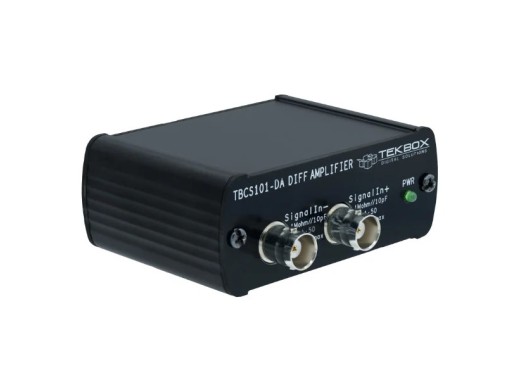

Tekbox TBCS101-DA differential amplifier
Details
The Tekbox TBCS101-DA is a differential amplifier with a 1:50 gain, and an output impedance of 50Ω, making it ideal for EMC testing and general differential signal measurement. The amplifier has a 3dB, 0-310MHz frequency range. This USB-C powered device is ideal for both CS101 testing and a diverse range of differential amplification applications.
Specifications
| Frequency range | 0 - 310 MHz |
| Gain | 1:50 |
| Rise time | ≤ 2.3 ns |
| Input impedance | 1 MΩ // 10pF |
| Max. rating | ± 100 V common mode 200 V differential mode |
| Output impedence | 50 Ω |
| Output return loss | > 20 dB typ. |
| Common mode rejection |
0 – 1 MHz (> 70 dB) 1 MHz – 100 MHz (≥ 80 dB) 100 MHz – 310 MHz (≥ 50 dB) |
| Max. output voltage | 2 Vpp |
| DC offset | < 10 mV (output) |
| Noise | < 1.4 mVrms |
| Connectivity | BNC-female |
| Power supply | 5 V USB-C |
| Dimensions | 82 x 33 x 80 mm |
| Weight | 100 g |
Accessories
The TBCS101-DA comes by default with:
- USB-C cable
Downloads
| Tekbox TBCS101-DA manual |  (660.77 KB) | Download |
