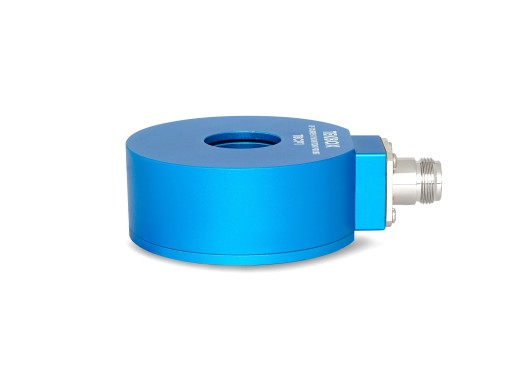

The TBCP1 series from Tekbox are RF current probes designed to measure high-frequency current. The probes have a frequency range of 10 kHz to 200 MHz, 30 kHz to 250Mhz or 30 kHz to 500Mhz depending on the model and can measure high-frequency current up to 3 A. For DC and frequencies up to 400 Hz, current up to 80 A can be measured.
As you would expect from Tekbox, the TBCP1 current probe is also of excellent quality at an affordable price.
We also sell the calibrator for the TBCP1, see this page.
Models
The models in the TBCP series differ in the characterized frequency range and the aperture.
| Model | TBCP1 | TBCP2 | TBCP3 | TBCP4 |
| Characterized frequency range | 10/30 kHz - 200/250/500 MHz | 30 kHz - 250/500/750 MHz | 30 kHz - 1 GHz | 10 kHz - 250/500/750 MHz |
| Aperture | 25 mm | 32 mm | 17 mm | 32 mm |
Specifications
| Max primary current (DC - 400 Hz) |
80 A |
| Max primary current (RF) |
3 A |
| Connector type |
N female |
| Weight |
320 g |
| Aperture diameter |
25 mm |
| Outside diameter |
76 mm |
| Height |
31 mm |
