Tekbox TBCG5 comb generator
Details

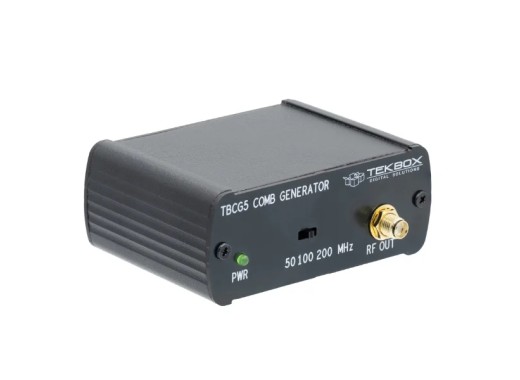

The TBCG5 is a harmonic comb generator with 3 switchable base frequencies of 200MHz, 100MHz and 50MHz. The generator creates a flat comb spectrum up to 3GHz and can be used up to 8GHz, though with less consistent amplitude. The TBCG5 can be used in EMC pre-compliance and lab test setups to measure cable resonance, shielding effectiveness, crosstalk and more.
Model overview
| Model | TBCG4 | TBCG5 |
|---|---|---|
| Base frequencies | 5, 10, 20 MHz | 50, 100, 200 MHz |
| Typical harmonic comb spectrum | 5 MHz - 1 GHz | 5 MHz - 3 GHz |
| Price |
Specifications
| Average output amplitude | 50 MHz: -20 dBm 100 MHz: -10 dBm 200 MHz: -5 dBm |
| Spectrum flatness | < 10 dB |
| Output | 50 Ω, SMA female |
| Power supply | USB-C |
| Dimensions | 56 x 81 x 33 mm |
| Weight | 95 g |
Accessories
The TBCG5 comes with:
- USB-C - USB-A cable
Downloads
| Tekbox TBCG5 user manual |  (1.88 MB) | Download |
