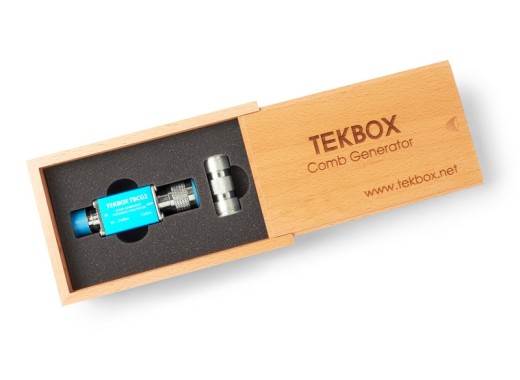

Tekbox TBCG2 comb generator / frequency multiplier
Details
The Tekbox TBCG2 is a passive comb generator/frequency multiplier, which is suitable for an input frequency from 1 MHz to 350 MHz. The TBCG2 can multiply the input signal to 1 MHz up to 2.5 GHz.
A Step Recovery Diode (SRD) system is used to generate signals with a flat spectrum. For example, the multiplier can be used as a simple alternative for a Tracking Generator, or to measure the rise time of an oscilloscope.
Specifications
| Input power | +10 dBm to +20 dBm, max. 25 dBm |
| Input frequency | 1 Mhz - 350 MHz |
| Output frequency | 1 MHz - 2.5 GHz |
| Input connection | N-female |
| Output connection | N-male |
| Dimensions | 81 x 26 x 26 mm |
| Weight | 96 g |
Accessories
The Tekbox TBCG2 is delivered including:
- N-female to N-male coax adaptor
Downloads
| Tekbox TBCG2 datasheet |
 (1.23 MB) |
Download |
