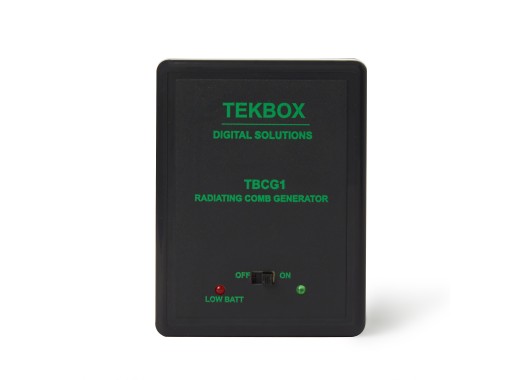

The TBCG1-100MHz is a radiating comb generator with an internal antenna and a base frequency of 100MHz. It radiates a comb spectrum characterized up to 6GHz. This device can be used to compare different antenna's, measure the accuracy of anechoic chambers, and compare different chambers with each other, etc. It is a portable and cheap device that can easily be used for taking daily measurements. It is powered by a 9V alkaline cell.
Model overview
| Models |
TBCG1-25MHz
|
TBCG1-100MHz
|
|---|
| Base frequency | 25 MHz | 100 MHz |
| Tolerance | ±3 dB | ±2.5 dB |
| Price |
98
€98.00
Excl. VAT
|
98
€98.00
Excl. VAT
|
Specifications
| Typical harmonic comb spectrum | 30 MHz - 6 GHz |
| Power supply | 9 V alkaline battery (not included) |
| Dimensions | 80 x 61 x 27 mm |
| Weight | 76 g |
Accessories
The Tekbox TBCG1-100Mhz is delivered without any batteries.
Downloads
(4.24 MB)
