Tekbox DC-LISN-Combo1C DC LISN set
Details

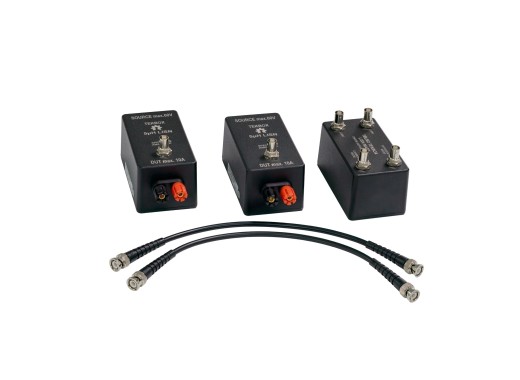

With this Tekbox DC-LISN-COMBO1C set, you have all the components to measure the conducted noise on the power line of your Device Under Test (DUT). Thanks to the two included TBL0510-1 DC LISNs and the TBLM02 LISN Mate, the conducted noise on a power line can be analysed and split into the differential- and common mode components, as shown in the third picture.
The included LISNs are intended for EMC pre-compliance measurements on the supply line of DC-powered devices, measuring in the frequency range from 100kHz to 400MHz. More information on the individual products can be found on their respective pages and datasheets.
Supplied products
The set consists of:
- 2x Tekbox TBL0510-1 DC LISN
- 1x Tekbox TBLM02 LISN Mate
- 1x BNC termination plug
- 2x N-male to BNC-male 75cm RG58 cable
- 1x BNC-male to BNC-male 35cm RG223 cable
Downloads
| Tekbox TBLM02 user manual |  (1006.25 KB) | Download |
| Tekbox TBL0510-1 user manual | (1.43 MB) | Download |
