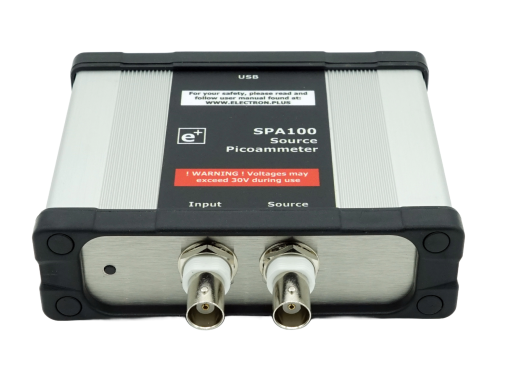

SPA100 source picoammeter
Details
SPA100 source picoammeter measures small currents (2mA down to 200pA) and has an integrated voltage source for biasing experiments. This instrument has many uses from measuring high-value resistances (upto 40TΩ), diode leakage testing, electron beam alignment, materials science etc.
The SPA100 connects to (and is powered by) a PC via USB and is controlled by the free software. Data can be viewed and graphed in real time and stored automatically in CSV files for later analysis..
Connection to the SPA100 is by commonly available 50Ω BNC connectors, and the front end (picoammeter and voltage source) is internally opto-isolated from the chassis/USB earth.
If you need more sources for your picoammeter check out the SPA120!
Specifications
| Input | ± 2 mA to ± 200 pA (8 ranges) |
| Accuracy and resolution |
± 0.1%; < 20 nA (± 2 mA input) ± 0.1%; < 2 nA (± 200 μA input) ± 0.2%; < 200 pA (± 20 μA input) ± 0.2%; < 20 pA (± 2 μA input) ± 0.2%; < 200 pA (± 20 μA input) ± 0.5%; < 2 pA (± 200 nA input) ± 0.5%; < 200 fA (± 20 nA input) ± 1.0%; < 20 fA (± 2 nA input) ± 1.5%; < 2 fA (± 200 pA input) |
| Sample rate | 2 Hz (18bit) 10 Hz (16bit) |
| Adjustable filter | 1 sample to 64 samples |
| Output voltage | -40 V to 40 V |
| Output resistance | 2.7 kΩ |
| Resistance measurement | 1 kΩ - 40 TΩ |
| Accuracy resistance | > ± 0.5% |
| Connectivity | USB (host/device) |
| Dimensions | 112 x 111 x 35 mm |
| Weight | 300 g |
Accessories
The SPA100 source picoammeter comes with:- 1x USB cable
Pros and cons
- High value resistance testing
- USB powered
- Test leads not included
Downloads
(176.81 KB)
