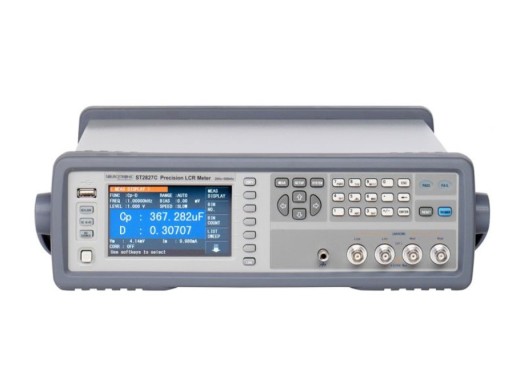

The Sourcetronic ST2827C precision LCR meter is an extensive bench-top meter. This meter can take measurements between 20 Hz and 1 MHz. Furthermore, the basic accuracy of this meter is 0.05%, which means that the LCR values can be measured very accurately. The ST2827C has an internal DC bias source, transformer parameter test function, list-sweep function and, makes it possible to select the resistance (30Ω / 50Ω / 100Ω).
The LCR meter displays the measured results clearly on the 7" TFT LCD color display. Two measurements can be shown at the same time, this makes the meter easy in use. Furthermore, the meter has several interfaces, a calibration function, and a built-in comparator with which results can be counted and sorted.
Model overview
| Model | ST2827A | ST2827C
|
|---|
| Bandwidth |
20 Hz - 300 kHz |
20 Hz - 1 MHz |
| Price |
2690
€2,690.00
Excl. VAT
|
5290
€5,290.00
Excl. VAT
|
Specifications
| Range of measurement parameters |
|
| |Z|, R, X, DCR |
0.00001 Ω - 99.9999 MΩ |
| |Y|,G, B |
0.00001 nS - 99.9999 S |
| C |
0.00001 pF - 9.99999 F |
| L |
0.00001 µH - 9.9999 kH |
| D |
0.00001 - 9.99999 |
| Q |
0.0001 - 99999 |
| θ(DEG) |
-179.999° - 179.999° |
| θ(RAD) |
-π - π |
| Δ% |
-999.999 % - 999.999 % |
| Remaining specifications |
|
| Precision |
0.05 % |
| Test signal |
10 mV - 2 Vrms
100 µA - 20 mA |
| Resolution |
10 mHz |
| Transformer test parameters |
DCR1, DCR2, M, N, 1/N, Phase, La, Lb, Lk, C, balance test |
| Range mode |
Auto, hold |
| Trigger mode |
Internal, external, manual, BUS |
| Measuring speed |
13 ms - 187 ms (3 speedmodi) |
| Internal nonvolatile memory |
100 sets of LCRZ setting files
201 times test results |
| Display |
800 x 480 TFT LCD color screen (7-inch) |
| Interfaces |
LAN-LXI, RS232C, I/O Handler, USB, GPIB (optional*) |
| Dimensions |
369 x 108 x 408 mm |
| Weight |
5 kg |
*There is a possibility to equip the ST2827A with a GPIB interface at an additional cost. If you are interested in this, please contact us!
Accessories
The Sourcetronic ST2827C precision LCR meter will be delivered including:
- ST26048 4 terminal test fixture
- ST26047 4 terminal test fixture
- ST26011B 4 terminal Kelvin test clip leads
- ST26010 Gilded shorting plate
- ST26038 Transformer test fixture
- Power cable
- Factory calibration certificate
Pros and cons
- 20 Hz - 1 MHz test frequency
- Extensive functionalities
