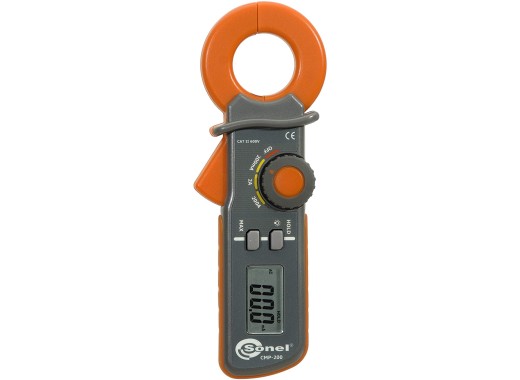

Sonel CMP-200 leakage current clamp meter
Details
The Sonel CMP-200 leakage current clamp meter is not available any more. The CEM DT-9810 leakage current probe is an alternative to the CMP-200.
The Sonel CMP-200 is a simple compact clamp meter rated for currents of up to 200A AC, at a resolution of 0.1 mA. It holds conductors of up to 30 mm even though the body is fairly small. Along with the backlit display, this makes a great choice for work in tight spots, for example when measuring leakage currents in a crowded meter box..
Specifications
| Maximum circuit current | 200 A |
| Measuring range | 0.1 mA - 200 A |
| True-RMS | Yes |
| Base accuracy | ± (5% + 8) |
| Display | 1999 counts LCD 2 updates/sec |
| LCD backlight | Yes |
| Clamp size | ø 30 mm |
| Other features | data hold, data max, automatic power-off |
| Safety category | Category II 600V
EN61010-1, EN61010-2-032 IP 40 |
| Power | 2x LR03 (AAA) |
| Dimensions | 182 x 61 x 34 mm |
| Weight | 225 g |
Accessories
The Sonel CMP-200 comes by default with::
- 2 x AAA batteries
Pros and cons
- Compact
- Only measures AC current
Downloads
| Sonel CMP-200 datasheet |  (386.01 KB) | Download |
