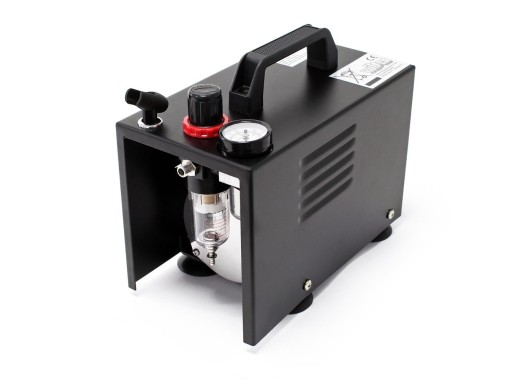

Silent compressor 20 l/min. 0-4 bar
Details
Compact portable compressor (less than 5kg), very quiet (47dB). Fully automatic and virtually vibration free.
Works without oil and therefore produces clean air. Equipped with water filter, pressure regulator and pressure gauge.
Suitable for our SP-1000 pasta dispenser, but also for tattoo, aquariums, labs, airbrush.
Please note: Don't forget to order the flow connector to 6mm push-in fitting if you want to connect the SP-1000 pasta dispenser to this compressor.
A version with air tank is also available. This version can achieve a higher pressure and is therefore better suitable to dust off electronics or equipment that requires a higher pressure (6 bar vs 4 bar).
Specifications
| Type | Single cylinder reciprocating compressor, oil free |
| Output | 1/5 Hp (150W) |
| Rotational speed | 1450/1700 rpm |
| Standard volume | 20-23 l/min |
| Pressure range | 0 - 4 Bar |
| adjustment range | On: 2.0 Bar Off: 4.0 Bar |
| Actual operating pressure in continuous use | 0.2 mm nozzle: 2.5 Bar 0.5 mm nozzle: 1.7 Bar |
| Max. Press | 6 Bar |
| Hose connection | 1/8" (9.51 mm) screw thread* |
| Cable length | 1.9 m |
| Nozzles | 0.2-1 mm |
| Dimensions | 255 x 135 x 170 mm |
| Weight | 4.8 kg |
| Noise | ± 47 dB |
