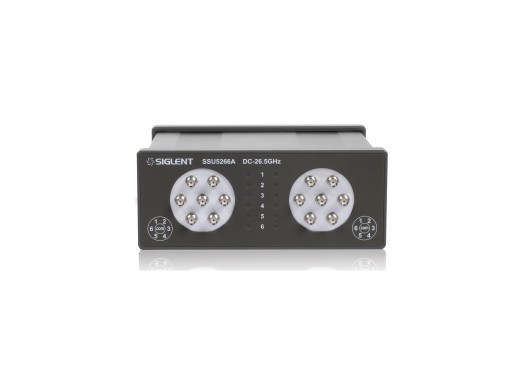

Siglent SSU5266A mechanical switch

5566.27 €5,566.27 Excl. VAT
Loading stock info
  •
Product number: ELE006873

Be the first to review this product

Lowest price guaranteed

Details

The Siglent SSU5266A is part of the SSU5000A series of mechanical switches, alle featuring low insertion loss and very short switching times. This model has a frequency range of DC - 26.5GHz and 2 independent SP6T mechanical switches with SMA RF connectors.

The product is controlled through the USB interface, using either SCPI instructions or the EasySSU software application. Of course, also NI-VISA and/or other programming languages can be used to remotely control the mechanical switch.

Take note, this product is remotely controlled and cannot be switched manually.

Model overview

The models in the SSU5000A series differ mainly in the number of SPDT or SP6T switches, the frequency range and the type of RF connectors.
ModelSwitchesFrequency rangeRF ConnectorsPrice
SSU5181A 1 (SPDT)DC - 18 GHzSMA 1435 €1,435.00 Excl. VAT
SSU5182A 2 (SPDT)DC - 18 GHzSMA 1525.06 €1,525.06 Excl. VAT
SSU5183A 3 (SPDT)DC - 18 GHzSMA 1616.49 €1,616.49 Excl. VAT
SSU5184A 4 (SPDT)DC - 18 GHzSMA 1707.92 €1,707.92 Excl. VAT
SSU5261A 1 (SPDT)DC - 26.5 GHzSMA 2091.92 €2,091.92 Excl. VAT
SSU5262A 2 (SPDT)DC - 26.5 GHzSMA 2274.78 €2,274.78 Excl. VAT
SSU5263A 3 (SPDT)DC - 26.5 GHzSMA 2457.64 €2,457.64 Excl. VAT
SSU5264A 4 (SPDT)DC - 26.5 GHzSMA 2640.5 €2,640.50 Excl. VAT
SSU5265A 1 (SP6T)DC - 26.5 GHzSMA 2823.36 €2,823.36 Excl. VAT
SSU5266A 2 (SP6T)DC - 26.5 GHzSMA 5566.27 €5,566.27 Excl. VAT
SSU5501A 1 (SPDT)DC - 50 GHz2.4 mm 4286.25 €4,286.25 Excl. VAT
SSU5502A 2 (SPDT)DC - 50 GHz2.4 mm 4560.54 €4,560.54 Excl. VAT
SSU5503A 3 (SPDT)DC - 50 GHz2.4 mm 6663.43 €6,663.43 Excl. VAT
SSU5504A 4 (SPDT)DC - 50 GHz2.4 mm 7852.02 €7,852.02 Excl. VAT

Specifications

DC - 3 GHz3 GHz - 8 GHz8 GHz - 12.4 GHz
VSWR (Voltage Standing Wave Ratio)<1.2<1.3<1.4
Insertion loss< 0.2 dB< 0.3 dB< 0.4 dB
Isolation< -80 dB< -70 dB< -60 dB
Switching time<15 ms
InterfacesUSB
Dimensions153 x 62.4 x 137.5 mm
Weight0.885 kg

Accessories

Any SSU5000A comes by default with:

  • Power cord
  • AC-DC adapter
  • USB cable

Pros and cons

  • Low insertion loss
  • Very short switching time
  • Requires software to switch

Downloads

Siglent SSU5000A series datasheet
pdf (1.2 MB)Download
Siglent SSU5000A series user manual
pdf (1.54 MB)Download
