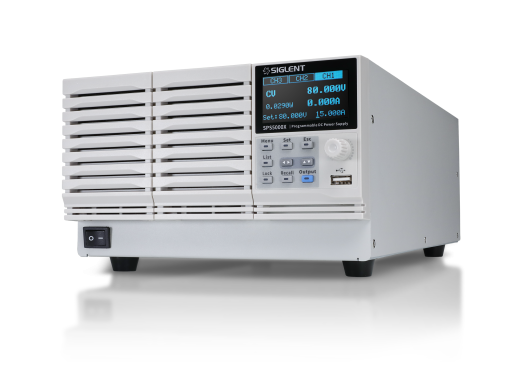

The SPS5085X from Siglent is a 3 channels programmable switching DC power supply with a maximum voltage of 80 V, a maximum current of 15 A and a maximum power of 360 W per channel. This power supply can be connected in series (2 units) or in parallel (3 units), check the datasheet for more information about connection possibilities.
The SPS5085X has a bright 2.4 inch OLED screen and a user-friendly interface. It also provides high resolution voltage and current settings, adjustable slew rates, on-device and through USB/LAN list sequence programming, analog control, and over-voltage, current, power and temperature protection. These features make the SPS5085X an ideal choice for demanding users.
Models
The models differ in the amount of channels, maximum voltage, current and output power.
| Model | SPS5041X | SPS5042X | SPS5043X | SPS5044X | SPS5045X |
| Channels | 1 | 1 | 1 | 2 | 3 |
| Voltage | 40 V | 40 V | 40 V | 40 V | 40 V |
| Current | 30 A | 60 A | 90 A | 30 A | 30 A |
| Output power | 360 W | 720 W | 1080 W | 360*2 W | 360*3 W |
| Price |
839
€839.00
Excl. VAT
|
1029
€1,029.00
Excl. VAT
|
1339
€1,339.00
Excl. VAT
|
1579
€1,579.00
Excl. VAT
|
1879
€1,879.00
Excl. VAT
|
| Model | SPS5051X | SPS5081X | SPS5082X | SPS5083X | SPS5084X | SPS5085X |
| Channels | 1 | 1 | 1 | 1 | 2 | 3 |
| Voltage | 50 V | 80 V | 80 V | 80 V | 80 V | 80 V |
| Current | 10 A | 15 A | 30 A | 45 A | 15 A | 15 A |
| Output power | 180 W | 360 W | 720 W | 1080 W | 360*2 W | 360*3 W |
| Price |
769
€769.00
Excl. VAT
|
999
€999.00
Excl. VAT
|
1239
€1,239.00
Excl. VAT
|
1619
€1,619.00
Excl. VAT
|
1739
€1,739.00
Excl. VAT
|
2089
€2,089.00
Excl. VAT
|
| Model | SPS5161X | SPS5162X | SPS5163X | SPS5164X | SPS5165X |
| Channels | 1 | 1 | 1 | 2 | 3 |
| Voltage | 160 V | 160 V | 160 V | 160 V | 160 V |
| Current | 7.5 A | 15 A | 22.5 A | 7.5 A | 30 A |
| Output power | 360 W | 720 W | 1080 W | 360*2 W | 360*3 W |
| Price |
999
€999.00
Excl. VAT
|
1239
€1,239.00
Excl. VAT
|
1619
€1,619.00
Excl. VAT
|
1739
€1,739.00
Excl. VAT
|
2089
€2,089.00
Excl. VAT
|
Specifications
| Maximum power |
360 W per channel |
| Maximum voltage |
80 V |
| Maximum current |
15 A |
| Resolution |
1 mV / 1 mA |
| Channels |
3 |
| Ripple |
7 mV RMS / 18 mA RMS |
| Protection functions |
OVP, OCP, OTP, Low AC Input Protection, LPP |
| Connectivity |
USB, LAN |
| Connector type |
Screw |
| Dimensions |
214 x 124 x 418 mm |
| Weight |
7.8 kg |
Accessories
The Siglent SPS5085X comes delivered with:
- USB cable
- Power cord
- Output test cord (10A)
- Output guard
Pros and cons
- Suitable for industrial applications
- Versatile use
Downloads
(2.1 MB)
