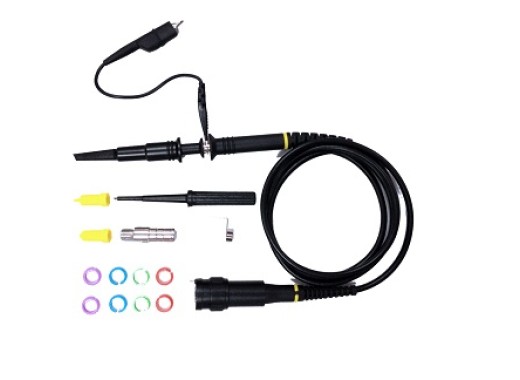

Siglent SP2035A passive probe 350 MHz
Details
The Siglent SP2035A is a passive probe with a bandwidth of 350MHz and an attenuation of 1:10. This probe can be used for many applications and is supplied with a number of accessories to ensure optimum contact.
The A version has a special pin to support the detection of the probe attenuation factor by oscilloscopes.
Specifications
| Bandwidth | 350 MHz |
| Rise time | 1.15 ns |
| Maximum voltage | 600 V DC + ACpk |
| Attenuation | 1:10 |
| Input impedance | 10 MΩ/12 pF |
