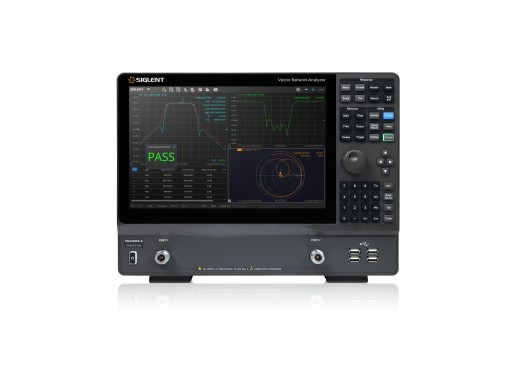

Siglent SNA5006X-E vector network analyser
Details
The Siglent SNA5006X-E vector network analyser is part of the SNA5000X-E series. This analyser comes with a frequency range from 9kHz to 6.5GHz. The analyser can be used to determine the performance of, for example, RF-/microwave equipment by calculating the reflection and transmission coefficients. To do so, these analysers support 2-port scattering-, differential- and time-domain parameter measurements. Additionally, this vector network analyser can also determine the Q-factor, bandwidth and insertion loss of a filter.
Furthermore, this analyser features impedance conversion, movement of measurement plane, limit testing, ripple testing, fixture simulation and adapter removal/insertion adjustment functions. The SNA5000X-E series features a big 12.1" touch-screen on which multiple measurement windows can be displayed at the same time. Measurement data from memory can be compared to current data, and the analysers have a data hold function. Also, the analysers have a HDMI port for video output, and can be controlled remotely by using a USB or webserver connection. Several advanced options are not available on the SNA5000X-E series. For more complex analysis, go for SNA5000A series.
Model overview
| Model | SNA5003X-E | SNA5006X-E |
|---|---|---|
| Frequency Range | 9 kHz - 3 GHz | 9 kHz - 6.5 GHz |
| Price |
Specifications
| Ports | 2 |
| Frequency resolution | 1 Hz |
| Level resolution | 0.05 dB |
| IFBW | 1 Hz - 10 MHz |
| Dynamic range | 125 dB (typical) |
| Output power range | -40 dBm to +10 dBm |
| Max. input level | +10 dBm |
| Noise floor (typical) | -125 dBm/Hz (100 kHz - 300 kHz) |
| Interfaces | LAN, USB host/device, HDMI Trigger in/out |
| Calibration types | Response, enhanced response, full one-port, full two-port, TRL |
| Measurement types | Scattering-parameter, differential-parameter, receiver, time-domain, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis |
| Display | 12.1" touch screen (1280x800) |
| Dimensions | 378 x 284 x 126 mm |
| Weight | 5.4 kg |
Options
| Siglent SNA5000-SA license | Enables basic spectrum analysis, OCBW and channel power/noise measurements. | |
| Siglent SNA5000-TDA license | Enables Basic Time Domain Reflectometer, to transfer measured frequency responses of a DUT to the time domain. Includes time domain low-pass step and pulse response as well as bandpass response for reflection and transmission. Includes gating and de-embedding. | |
| Siglent SNA5000-TDR license | Enables Enhanced Time Domain Reflectometer, to transfer measured frequency responses of a DUT to the time domain. Includes time domain low-pass step and pulse response as well as bandpass response for reflection and transmission. Includes gating and de-embedding. In addition, the TDR software simulates the setup of a traditional time domain reflectometer. The rise time of the step signal and the width of the pulse signal can be set and it supports eye diagram transmission testing, making it superior to the SNA5000-TDA software |
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Accessories
The SNA5006X-E comes by default with:
- Certificate of Calibration
- Power cable
- USB cable
- Protective cover
- Wireless mouse
Pros and cons
- Wide IFBW range from 1Hz up to 10MHz
- Deep typical dynamic range of 125dB
- 2-port configuration only
Downloads
| Siglent SNA5000X-E datasheet |  (2.17 MB) | Download |
| Siglent SNA5000(X-E) series user manual | (14.06 MB) | Download |
