387.6 €387.60 Excl. VAT
Back in stock at 21/07/2017

Be the first to review this product

Details

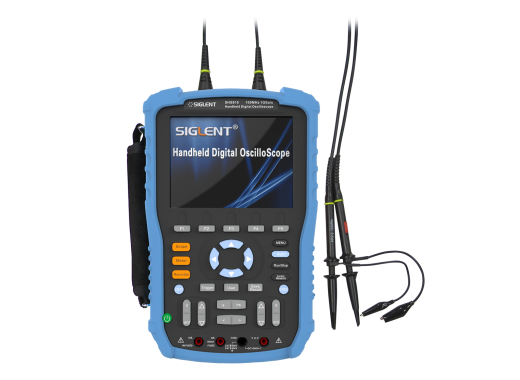

Oscilloscopes in the Siglent SHS800 series are portable 2-channel oscilloscopes with an 5.7” LCD display. These oscilloscopes feature a 2 Megapoints memory and a sample rate of up to 1 Gigasample per second. Thanks to the handheld design and the built in battery that lasts about 5 hours the oscilloscopes from the SHS800 series are ideal for mobile usages. The SHS800 also has a multimeter built in. The devices combine an oscilloscope, a multimeter and a recorder in one small package.

These oscilloscopes can be connected to a PC via USB directly, or a USB-memory stick can be connected to save measurement data. This can be done both as binary data or as a screenshot.

Models

The models in the SHS800 series differ mainly in their bandwidth and the maximal sample rate. The key specifications are displayed conveniently in the table below.

ModelSHS806SHS810SHS820
Number of channels  2 2 2
Analog bandwidth 60 MHz 100 MHz 200 MHz
Memory size 2 Mpts 2 Mpts 32 kpts
Sample rate (1 channel active) 1 GS/s 1 GS/s 500 MS/s
Sample rate (2 channels active) 500 MS/s 500 MS/s 500 MS/s

Specifications


Oscilloscope

Memory size SHS806/SHS810: 2MB
SHS820: 32 KB
Display 5,7" TFT, 320*234 pixels
Input impedance 1 MΩ
Rise Time SHS806: ≤5.8 ns
SHS810: ≤3.5 ns
SHS820: ≤1.7 ns
Horizontal scale SHS806: 5 ns/div - 50s/div
SHS810/SHS820: 2.5 ns/div - 50 s/div
Vertical sensitivity 2 mV/div - 100 V/div
A/D convertor 8 bit resolution
Isolation level CATⅡ 300V and CAT Ⅲ 150V
standard probe: cat II 400V (pk-pk)
Probe support 1x, 10x, 50x, 100x, 500x, 1000x
Number of channels 2
Connections USB 2.0 type A, USB 2.0 type B
Weight (Without box) 1.5 Kg
Dimensions 260 x 163 x 53 mm (LxWxH)

Multimeter

Maximal voltage AC: 750 V (20-1000 hz) DC: 1000 V
Maximal current AC/DC: 10 A
Maximal resolution 6000 counts
Measurements DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity

For more information check the datasheet of this product

Accessories

All oscilloscopes in the SHS800 series come bundeled with:

  • 2 passive probes: 1x / 10x
  • 2 multimeter measurement cables
  • 9V/4A power adapter
  • USB cable
  • Manual (English)
  • CD with Software (Windows XP, Vista, 7)

Optionally, you can order a carrying bag to transport your oscilloscope in.
