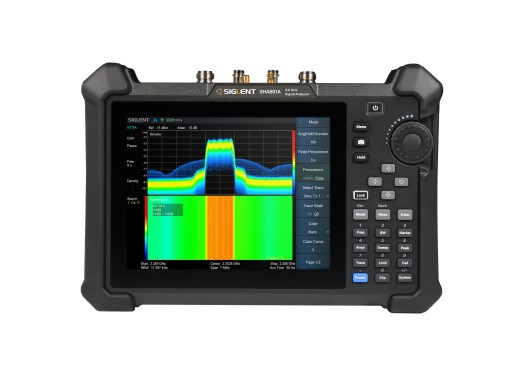

The Siglent SHA861A is a powerful handheld spectrum analyser part of the SHA860A series, with a maximum bandwidth of 3.6GHz. The analyser comes with a large 8.4" touchscreen display, together with full keyboard control on the side, making the SHA861A easy to operate. Even though this is a handheld spectrum analyser, it can still compete with its desktop competitors, as it comes with an even better phase noise of 104dBc/Hz, and it has a DANL of -165dBm/Hz.
The SHA860A series has the hardware needed for 5G and LTE signal analysis, which is often essential for modern network deployment, optimisation and troubleshooting. Additionally, the SHA861A has a wide RBW range from 1Hz to 10MHz, making it ideal for 5G NR, Wi-Fi (802.11ac/ax) and ultra-wideband systems.
Model overview
| Model | SHA861A
| SHA862A
|
|---|
| Bandwidth |
9 kHz - 3.6 GHz |
9 kHz - 7.5 GHz |
| Price |
10138.8
€8,520.00
Excl. VAT
|
14827.4
€12,460.00
Excl. VAT
|
Specifications
| RBW | 1 Hz - 10 MHz |
| DANL | - 165 dBm/Hz |
| Amplitude accuracy | < 0.7 dB |
| Phase noise | < - 104 dB/Hz |
| Tracking generator | Independent source (option) |
| Interfaces | LAN, USB-TMC, GPIB (USB-GPIB adaptor) |
| Battery | 2.5 hours work time |
| Display | 8.4" TFT LCD (800x600) |
| Dimensions | 310 x 215 x 78.5 mm |
| Weight | 3.2 kg |
Options
| Directional antenna kit. Consists of ANT-DA11, ANT-DA12 and ANT-DA13 (hardware) | ANT-DA1
|
7199.59
€6,050.08
Excl. VAT
|
| Directional antenna 10MHz - 200MHz (hardware) | ANT-DA11
|
3029.5
€2,545.80
Excl. VAT
|
| Directional antenna 200MHz - 500MHz (hardware) | ANT-DA12
|
3029.5
€2,545.80
Excl. VAT
|
| Directional antenna 500MHz - 8GHz (hardware) | ANT-DA13
|
3593.02
€3,019.34
Excl. VAT
|
| GPS antenna (hardware) | ANT-GPS1
|
20.29
€17.05
Excl. VAT
|
| SH861A to SH862A upgrade | SHA860-F2
|
5926.2
€4,980.00
Excl. VAT
|
| Analysis bandwidth upgrade to 110MHz | SHA860-B1A
|
5212.2
€4,380.00
Excl. VAT
|
| Advanced measurement kit | SHA860-AMK
|
654.5
€550.00
Excl. VAT
|
| EMI measurement option | SHA860-EMI
|
892.5
€750.00
Excl. VAT
|
| 5G NR OTA measurement option | SHA860-NR
|
4879
€4,100.00
Excl. VAT
|
| LTE TDD/FDD OTA measurement option | SHA860-LTE
|
3070.2
€2,580.00
Excl. VAT
|
| Real-time spectrum analysis option | SHA860-RTA
|
4319.7
€3,630.00
Excl. VAT
|
| IQ data acquisition option | SHA860-IQA
|
4319.7
€3,630.00
Excl. VAT
|
| Pulse profile analysis option | SHA860-PU
|
1344.7
€1,130.00
Excl. VAT
|
| Digital modulation analysis option | SHA860-DMA
|
975.8
€820.00
Excl. VAT
|
| Analog modulation analysis | SHA860-AMA
|
547.4
€460.00
Excl. VAT
|
| Source option | SHA860-SOR
|
476
€400.00
Excl. VAT
|
| Cable and antenna test | SHA860-CAT
|
1463.7
€1,230.00
Excl. VAT
|
| Vector network analysis option | SHA860-VNA
|
1808.8
€1,520.00
Excl. VAT
|
| Bias out option | SHA860-BIAS
|
226.1
€190.00
Excl. VAT
|
| GPS receiver option | SHA860-GPS
|
321.3
€270.00
Excl. VAT
|
| Outdoor/indoor map option | SHA860-MAP
|
1118.6
€940.00
Excl. VAT
|
| EasyMap software option | EasyMap
|
654.5
€550.00
Excl. VAT
|
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Accessories
- USB-C cable
- Power cord
- AC-DC adapter
- Battery (built-in)
- Portable bag
Pros and cons
- Excellent phase noise and DANL
- Easy to operate
- Can be extended with many options
- 5G NR capable
Downloads
(3.05 MB)
