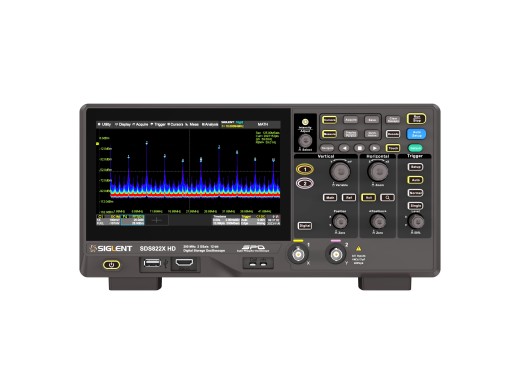

The Siglent SDS822X HD is a 2-channel oscilloscope and the 200MHz version in the SDS800X HD series. The SDS800X HD series have a 12-bit resolution to reduce quantization uncertainty and in turn improve signal fidelity and analysis capabilities. This oscilloscope also features a 100Mpts single channel memory depth as well as a 2GSa/s sample rate. Furthermore, the oscilloscopes from this series have a 7" touchscreen display with a resolution of 1024 x 600 pixels and a high capture rate of 500,000 waveforms per second. Also included are 256-Level intensity grading and color temperature display modes. The SDS800X HD series include bode plot analysis, mask testing and optional power analysis.
A large number of frames with data can be stored for further analysis. In addition, the SDS800X HD series oscilloscopes have an ultra-low noise floor, making measurements on very small signals possible and resulting in cleaner signals. Moreover, multiple interface options are included as there is USB host/device in addition to: LAN, HDMI, Pass/Fail and trigger out. Remote control via a web browser is also possible due to the built-in web server. The SDS800X HD series can also be extended with several options such as a logic analyser and function generator that can be found in the options table below.
Model overview
| Model |
Bandwidth |
Channels |
Memory depth |
Rise time |
Price |
|---|
| SDS802X HD
|
70 MHz |
2 |
50 Mpts (single channel)25 Mpts (dual channel) |
5 ns |
359
€359.00
Excl. VAT
|
| SDS804X HD
|
70 MHz |
4 |
50 Mpts (single channel)25 Mpts (dual channel)10 Mpts (all channels active) |
5 ns |
409
€409.00
Excl. VAT
|
| SDS812X HD
|
100 MHz |
2 |
50 Mpts (single channel)25 Mpts (dual channel) |
3.5 ns |
409
€409.00
Excl. VAT
|
| SDS814X HD
|
100 MHz |
4 |
50 Mpts (single channel)25 Mpts (dual channel)10 Mpts (all channels active) |
3.5 ns |
499
€499.00
Excl. VAT
|
| SDS822X HD
|
200 MHz |
2 |
100 Mpts (divided by number of active channels) |
1.8 ns |
539
€539.00
Excl. VAT
|
| SDS824X HD
|
200 MHz |
4 |
100 Mpts (divided by number of active channels) |
1.8 ns |
699
€699.00
Excl. VAT
|
Specifications
| Sample rate | 2 GS/s (divided by number of active channels) |
| Waveform capture rate | 500,000 wfm/s |
| Vertical resolution | 12 bits |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 2 ns/div - 1000 s/div(70/100 MHz models), 1 ns/div - 1000 s/div(200 MHz models) |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out |
| Decoding | IIC, SPI, UART/RS232, CAN, LIN |
| Display | 7" TFT LCD touchscreen(1024 x 600) |
| Dimensions | 312 x 151 x 132.6 mm |
| Weight | 2.6 kg |
Accessories
The Siglent SDS822X HD comes with the following accessories:
- 2x PP215 probe
- Power cord
- 1x USB cable
Options
| 25 MHz function generator |
This option adds a USB 25 MHz function generator to the oscilloscope. On the product page of the function generator you have the choice to buy the corresponding software. This software is needed to use the function generator.
|
|
| SLA1016 logic analyser (hardware option) |
This 16 channel logic analyser makes it possible to analyze digital signals. Be aware that in order to use this option you also need the SLA1016 software for SDS800X HD series option which you can also find directly below.
|
|
| SLA1016 software for SDS800X HD series |
Software for the Siglent SLA1016 logic analyser. Be aware that in order to use this option you also need the SLA1016 logic analyser which you can also find directly above.
|
|
| SDS800X HD power analysis option |
With this software option, power-analysis can be added to the functionality of the Siglent SDS800X HD series.
|
|
| DF2001A deskew fixture |
This option is used for phase calibration of voltage and current probes resulting in more accurate power analysis.
|
|
