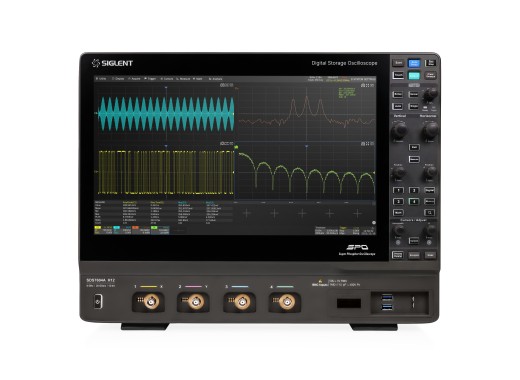

Siglent SDS7604A H12 oscilloscope

35690 €35,690.00 Excl. VAT

Free shipping to EU mainland
For other destinations shipping is calculated in the shopping cart

Loading stock info

Product number: ELE007916

Be the first to review this product

Lowest price guaranteed

Details

The Siglent SDS7000A series oscilloscopes features 12-bit 4-channel oscilloscopes and the SDS7604A is the 6GHz bandwidth model within this series. It also employs Siglent's SPO technology which ensures high capture rates and an Enhanced Sample Rate (ESR) function that guarantees higher accuracy during measurements. The max. input voltage of 400Vpk @1MΩ and 5Vrms @50Ω.

Oscilloscopes in the SDS7000A series have a digital trigger system with high sensitivity and low jitter. In comparison to earlier models, it features many additional trigger types. It has the usual standards but Nth edge, Setup/hold, Delay, Video (via HDMI) and Zone are included as well. For data analysis, many functions are featured, such as history & sequence mode waveform recording, search & navigate, serial bus decoding, hardware-based high-speed mask tests and power & eye/jitter analysis. Any additional software or hardware expansions can be found in the options table below.

Featuring a big 15.6" touch-screen display with a 256-level intensity and colour temperature display function, it also supports multi-touch gestures with which the waveform traces can be manipulated, moved or scaled. Furthermore, mouse control is possible as well as remote control via web control through LAN.

Model overview

Model	Bandwidth	Rise time	Sample rate	Memory depth	Price
SDS7304A	3 GHz	130 ps	20 GSa/s (dual channel) 10 GSa/s (3 or 4 channels)	500 Mpts (per channel)	18990 €18,990.00 Excl. VAT
SDS7404A	4 GHz	116 ps	20 GSa/s (dual channel) 10 GSa/s (3 or 4 channels)	500 Mpts (per channel)	24690 €24,690.00 Excl. VAT
SDS7604A	6 GHz	68 ps	20 GSa/s (dual channel) 10 GSa/s (3 or 4 channels)	500 Mpts (per channel)	35690 €35,690.00 Excl. VAT
SDS7604AP	6 GHz	68 ps	20 GSa/s (all channels)	1 Gpts (per channel, 1 or 2 active) 500 Mpts (per channel, 3 or 4 active)	52620 €52,620.00 Excl. VAT
SDS7804A	8 GHz	58 ps	20 GSa/s (dual channel) 10 GSa/s (3 or 4 channels)	500 Mpts (per channel)	62200 €62,200.00 Excl. VAT
SDS7804AP	8 GHz	58 ps	20 GSa/s (all channels)	1 Gpts (per channel, 1 or 2 active) 500 Mpts (per channel, 3 or 4 active)	70860 €70,860.00 Excl. VAT

Specifications

Channels	4
Waveform capture rate	1,000,000 wfm/s
Vertical resolution	12 bit (16 bit in ERES mode)
Vertical scale	1 mV/div - 10 V/div (1 MΩ) 1 mV/div - 1 V/div (50 Ω)
Horizontal scale	0.05 ns/div - 1000 s/div
Interfaces	USB host/device, LAN, Telnet +SCPI, Socket 5025 +SCPI, LXI, webserver, DVI-D, DP, HDMI, Ext. Trigger In, Aux Out
Decoding options	I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC430, USB 2.0
Display	15.6" LCD Touch-screen (1920 x 1080)
Dimensions	444.5 x 367 x 176.4 mm
Weight	10.6 kg

Hardware options

16 channel logic analyser	SPL2016	425.01 €425.01 Excl. VAT
DF2001A deskew fixture	DF2001A	219 €219.00 Excl. VAT
USB 2.0 test fixture	FX-USB2	1030 €1,030.00 Excl. VAT
100Base-TX & 1000Base-T compliance test fixture	FX-ETH	1030 €1,030.00 Excl. VAT
100Base-T1 & 1000Base-T1 compliance test fixture	FX-AMETH	1030 €1,030.00 Excl. VAT
2.5G/5G/10G Ethernet test fixture	FX-MGETH	1030 €1,030.00 Excl. VAT
Rack Mount Kit	SDS7000A-RMK	557 €557.00 Excl. VAT

Software options

Waveform generator	SDS7000A-FG	730 €730.00 Excl. VAT
Power analysis	SDS7000A-PA	1610 €1,610.00 Excl. VAT
Eye diagram/Jitter Analysis	SDS7000A-EJ	1960 €1,960.00 Excl. VAT
RTSA / DDC / Signal Analysis, A models	SDS7000A-RFA	8230 €8,230.00 Excl. VAT

I2S trigger & decode	SDS7000A-I2S	540 €540.00 Excl. VAT
MIL-STD-1553B trigger & decode	SDS7000A-1553B	540 €540.00 Excl. VAT
FlexRay trigger & decode	SDS7000A-FlexRay	540 €540.00 Excl. VAT
CAN FD trigger & decode	SDS7000A-CANFD	540 €540.00 Excl. VAT
CAN XL decode	SDS7000A-CANXL	540 €540.00 Excl. VAT
SENT trigger & decode	SDS7000A-SENT	540 €540.00 Excl. VAT
ARINC429 trigger & decode	SDS7000A-ARINC	540 €540.00 Excl. VAT
Manchester trigger & decode	SDS7000A-Manch	540 €540.00 Excl. VAT
USB 2.0 decode	SDS7000A-USB2	540 €540.00 Excl. VAT

USB 2.0 compliance test	SDS7000A-CT-USB2	510 €510.00 Excl. VAT
100Base-TX compliance test	SDS7000A-CT-100BASE-T	2130 €2,130.00 Excl. VAT
1000Base-T compliance test	SDS7000A-CT-1000BASE-T	3590 €3,590.00 Excl. VAT
2.5G/5G/10G Base-T compliance test	SDS7000A-CT-2.5/5/10GBASE-T	5650 €5,650.00 Excl. VAT
100Base-T1 compliance test	SDS7000A-CT-100BASE-T1	2310 €2,310.00 Excl. VAT
1000Base-T1 compliance test	SDS7000A-CT-1000BASE-T1	3820 €3,820.00 Excl. VAT
MIPI-DPHY compliance test	SDS7000A-CT-DP	7080 €7,080.00 Excl. VAT
DDR2/DDR3 compliance test	SDS7000A-CT-DDR	7080 €7,080.00 Excl. VAT

1 Gpts memory depth upgrade	SDS7000A-1GPTS	3120 €3,120.00 Excl. VAT
2 Gpts memory depth, AP models	SDS7000AP-2GPTS	5070 €5,070.00 Excl. VAT
3 GHz to 4 GHz bandwidth upgrade	SDS7000A-BW3T4	7410 €7,410.00 Excl. VAT
6 GHz to 8 GHz bandwidth upgrade	SDS7000A-BW6T8	27800 €27,800.00 Excl. VAT
6 GHz to 8 GHz bandwidth upgrade, AP models	SDS7000AP-BW6T8	21880 €21,880.00 Excl. VAT

Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
