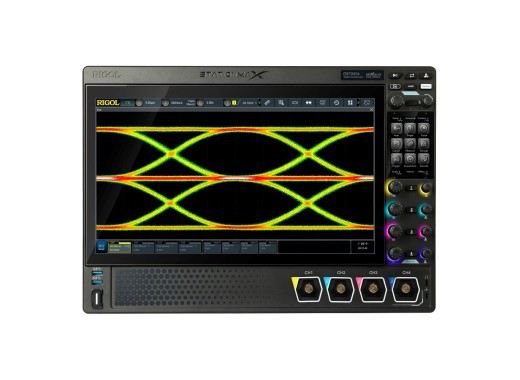

The Rigol DS70504 is the 4-channel, 5GHz version of the DS70000 series oscilloscopes.
Apart from being an oscilloscope, it also has a digital voltmeter, 8-digit frequency counter and totalizer.
This series of oscilloscopes features a very high memory depth of 500Mpts, a sample rate of 20GSa/s and a waveform capture rate of ≥ 1 million waveforms per second.
The DS70000 series has an adjustable vertical resolution of 8-16 bits and features a 15.6" full HD TFT display with a capacitive touchscreen.
Model overview
| Models |
DS70304
|
DS70504
|
|---|
| Bandwidth | 3 GHz (50 Ω) | 5 GHz (50 Ω)
500 MHz (1 MΩ) |
| Calculated rise time (<50 Ω) | ≤ 130 ps | ≤ 108 ps |
| Price |
19990
€19,990.00
Excl. VAT
|
26990
€26,990.00
Excl. VAT
|
Specifications
| Channels | 4 |
| Memory depth | 500 Mpts |
| Sample rate | 20 GSa/s (per channel) |
| Waveform capture rate | ≥ 1,000,000 wfm/s |
| Vertical resolution | 8 - 16 bits (selectable) |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 50 ps/div - 1000 s/div |
| Interfaces | USB Host, USB Device, LAN, HDMI, Web control |
| Decoding options | IIC, SPI, UART/RS232, CAN, LIN, FlexRay, I2S, MILSTD-1553, CAN-FD |
| Display | 15.6" touchscreen LCD (1920 x 1080) |
| Dimensions | 439 x 310 x 491 mm |
| Weight | 22.5 kg |
Options
| 2 Gpts memory depth upgrade (software) | DS70000-RL-20
|
3990
€3,990.00
Excl. VAT
|
| Embedded serial bus trigger and analysis protocols (RS232/UART/I2C/SPI) (software) | DS70000-EMBDA
|
1590
€1,590.00
Excl. VAT
|
| Auto serial bus trigger and analysis protocols (CAN/CAN-FD/LIN/FlexRay) (software) | DS70000-AUTOA
|
1590
€1,590.00
Excl. VAT
|
| Audio serial bus trigger and analysis protocols (I2S) (software) | DS70000-AUDIOA
|
1590
€1,590.00
Excl. VAT
|
| Aerospace serial bus trigger and analysis protocols (MIL-STD-1553) (software) | DS70000-AEROA
|
1590
€1,590.00
Excl. VAT
|
| Advanced eye diagram and jitter analysis protocols (software) | DS70000-JITTA
|
3990
€3,990.00
Excl. VAT
|
| USB2.0 pre-compliance test (software) | DS70000-USBC
|
1590
€1,590.00
Excl. VAT
|
| 100Base-T ethernet pre-compliance test (software) | DS70000-ENETC
|
4990
€4,990.00
Excl. VAT
|
| Real-time spectrum analysis (software) | DS70000-RTSA
|
3990
€3,990.00
Excl. VAT
|
Accessories
The DS70504 comes by default with:
- Power cord
- 4x 500 MHz Passive HighZ Probes
- USB cable
Downloads
(21.16 MB)
