Siglent SDS5108X HD oscilloscope

Eleshop
Test & measure
Oscilloscopes
All oscilloscopes
Siglent SDS5108X HD oscilloscope

16020 €16,020.00 Excl. VAT

Loading stock info

Product number: ELE008713

Lowest price guaranteed

Details

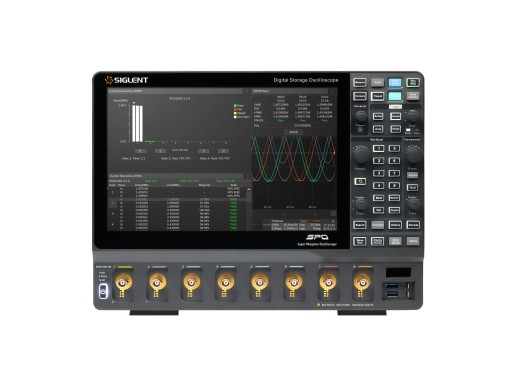

The Siglent SDS5108X HD is a 12-bit high-end digital oscilloscope part of the SDS5000X HD series. It features 8 analog channels with a bandwidth of 1GHz. The oscilloscope features a large memory depth and high sampling rates of 2.5Gpts/ch and 5GSa/s in quarter-channel mode, or 500Mpts/ch and 2.5GSa/s in full-channel mode. The vertical resolution can be increased up to 16-bit in HiRes mode. Furthermore, the SDS5000X HD series features a low noise floor of 140µVrms. Additionally, the oscilloscope supports automatic measurements for over 60 parameters, including statistics, mathematical functions, and memory traces.

The SDS5000X HD series oscilloscopes come with a large 12.1” TFT-LCD with a capacitive touch screen and multi-touch gesture control. The oscilloscopes also have a built-in web server for remote control using the LAN port. Finally, the oscilloscope supports standard SCPI remote control commands.

The SDS5000L series is a low-profile variant of the SDS5000X HD. It comes without a display and must be connected to external peripherals to be used as a stand-alone oscilloscope.

Model overview

Model	Bandwidth	Channels	Horizontal scale	Price
SDS5034X HD	350 MHz	4	1 ns/div – 1000 s/div	7760 €7,760.00 Excl. VAT
SDS5054X HD	500 MHz	4	0.5 ns/div – 1000 s/div	9300 €9,300.00 Excl. VAT
SDS5104X HD	1 GHz	4	0.2 ns/div – 1000 s/div	12180 €12,180.00 Excl. VAT
SDS5036X HD	350 MHz	6	1 ns/div – 1000 s/div	8530 €8,530.00 Excl. VAT
SDS5056X HD	500 MHz	6	0.5 ns/div – 1000 s/div	10830 €10,830.00 Excl. VAT
SDS5106X HD	1 GHz	6	0.2 ns/div – 1000 s/div	14380 €14,380.00 Excl. VAT
SDS5038X HD	350 MHz	8	1 ns/div – 1000 s/div	9580 €9,580.00 Excl. VAT
SDS5058X HD	500 MHz	8	0.5 ns/div – 1000 s/div	12460 €12,460.00 Excl. VAT
SDS5108X HD	1 GHz	8	0.2 ns/div – 1000 s/div	16020 €16,020.00 Excl. VAT

Specifications

Memory depth	Quarter channel mode: 2.5 Gpts Half channel mode: 1 Gpts Full channel mode: 500 Mpts (divided by the number of active channels)
Sample rate	Quarter/half channel mode: 5 GS/s Full channel mode: 2.5 GS/s (divided by the number of active channels)
Waveform capture rate	Normal mode: Up to 160,000 wfm/s Sequence mode: Up to 650,000 wfm/s
Vertical resolution	12 bits 16 bits in HiRes mode
Vertical scale	1 MΩ: 0.5 mV/div – 10 V/div, 2 μV/div – 10 V/div in zoom mode 50 Ω: 0.5 mV/div – 1 V/div, 2 μV/div – 1 V/div in zoom mode
Interfaces	USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Trigger In, HDMI, Aux Out, 10 MHz In, 10 MHz Out
Decoding	I2C, SPI, UART, CAN, LIN
Display	12.1" TFT LCD (1280x800)
Dimensions	379 x 288 x 159 mm
Weight	5.5 kg

Optional add-ons:

For more information on pricing, compatibility, or if you need help choosing the right configuration, please contact us.

Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
