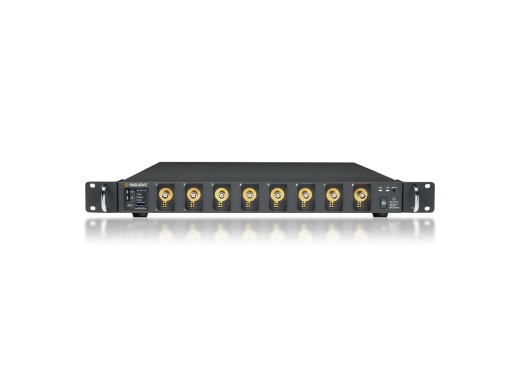

Siglent SDS5108L oscilloscope
Details
The Siglent SDS5108L is a 12-bit high-end digital oscilloscope part of the SDS5000L series. It features 8 analog channels with a bandwidth of 1GHz. The oscilloscope features a large memory depth and high sampling rates of 2.5Gpts/ch and 5GSa/s in quarter-channel mode, or 500Mpts/ch and 2.5GSa/s in full-channel mode. The vertical resolution can be increased up to 16-bit in HiRes mode. Furthermore, the SDS5000L series features a low noise floor of 140µVrms. Additionally, the oscilloscope supports automatic measurements for over 60 parameters, including statistics, mathematical functions, and memory traces.
The SDS5000L series is a low-profile variant of the SDS5000X HD series. It comes without a display, so if you want to use it as a stand-alone oscilloscope, an external display and mouse must be connected. The oscilloscopes also feature a built-in web server for remote control via the LAN port. Finally, the oscilloscope supports standard SCPI remote control commands.
Model overview
| Model | SDS5038L | SDS5058L | SDS5108L |
|---|---|---|---|
| Bandwidth | 350 MHz | 500 MHz | 1 GHz |
| Horizontal scale | 1 ns/div – 1000 s/div | 0.5 ns/div – 1000 s/div | 0.2 ns/div – 1000 s/div |
| Price |
Specifications
| Channels | 8 |
| Memory depth | Quarter channel mode: 2.5 Gpts Half channel mode: 1 Gpts Full channel mode: 500 Mpts (divided by the number of active channels) |
| Sample rate | Quarter/half channel mode: 5 GS/s Full channel mode: 2.5 GS/s (divided by the number of active channels) |
| Waveform capture rate | Normal mode: Up to 160,000 wfm/s Sequence mode: Up to 650,000 wfm/s |
| Vertical resolution | 12 bits 16 bits in HiRes mode |
| Vertical scale | 1 MΩ: 0.5 mV/div – 10 V/div, 2 μV/div – 10 V/div in zoom mode 50 Ω: 0.5 mV/div – 1 V/div, 2 μV/div – 1 V/div in zoom mode |
| Interfaces | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Trigger In, HDMI, Aux Out, 10 MHz In, 10 MHz Out |
| Decoding | I2C, SPI, UART, CAN, LIN |
| Dimensions | 395 x 43.15 x 413.85 mm |
| Weight | 6.2 kg |
Optional add-ons:
- Power analysis option (software)
- 3-phase power analysis (software)
- I2S trigger & decode (software)
- MIL-STD-1553B trigger & decode (software)
- FlexRay trigger & decode (software)
- CAN FD trigger & decode (software)
- SENT trigger & decode (software)
- Manchester decode (software)
- ARINC429 trigger & decode (software)
For more information on pricing, compatibility, or if you need help choosing the right configuration, please contact us.
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Accessories
- USB cable
- 8x passive probes 500 MHz
- Calibration certificate
- Wireless mouse
- Power cord
Downloads
| Siglent SDS5000X datasheet |  (1.99 MB) | Download |
