Product number: ELE003355

Be the first to review this product

With any purchase of a Siglent SDS2000X Plus oscilloscope, you can additionally buy the SPL2016 and SDS2000XP-FG function generator for a combined price of only €235 (excl. VAT)! In addition, if you buy these options with your oscilloscope, you will automatically receive all decoding options for free, including: CANFD, I2S, MIL1553B, FlexRay, SENT and Manchester. Promotion valid until June 30th 2024.

Details

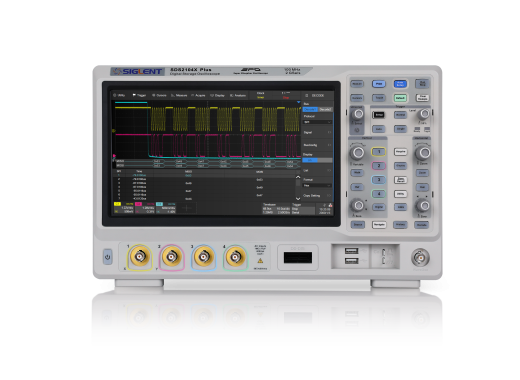

The Siglent SDS2104X Plus oscilloscope is the 4-channel 100 MHz version in the Siglent SDS2000X Plus series oscilloscopes.

The Siglent SDS2104X Plus oscilloscope offers a large and bright 10.1" screen. Because of the large screen, there is less space for knobs and buttons on the oscilloscope, but this is fully compensated by the modern multi-touch interface on the screen.
The series also features a 10 bit ADC @100MHz (Analog to Digital Converter), which is a nice feature compared to the majority of oscilloscopes that have only 8 bits as standard. The SDS2104X Plus now also comes with a trigger zone function, which makes advanced triggering easier.
By default the scope comes with a number of serial triggering and decoding options such as I2, SPI, UART, CAN and LIN. This makes the scope a very comprehensive model, which is now even more attractive because it is equipped with a very low noise floor (80 µV).

The already very complete oscilloscope can be expanded with a 16 channel logic analyser, arbitrary function generator, power analysis software, and with the software to decode additional protocols.

Model overview

The Siglent SDS2104X Plus is part of the SDS2000X Plus series. The following models are for sale from this series.

Model SDS2102X Plus SDS2104X Plus SDS2204X Plus SDS2354X Plus
Bandwidth 100 MHz 100 MHz 200 MHz 350 MHz
Rise time 3.5 ns 3.5 ns 1.7 ns 1.0 ns
Total memory 200 Mpts 400 Mpts 400 Mpts 400 Mpts
Number of channels 2 4 4 4
Price 899 €899.00 Excl. VAT 1199 €1,199.00 Excl. VAT 1899 €1,899.00 Excl. VAT 2599 €2,599.00 Excl. VAT

Specifications

Memory Up to 200 Mpts per channel
Waveform capture rate (max) 120,000 wfms/s (normal)
500,000 wfms/s (sequence mode)
Sample rate (half of all channels in use) 2 GSa/s
Sample rate (all channels in use) 1 GSa/s
Display 10.1" multi-touch screen (1024 x 600)
Ingress impedance 1 MΩ
Horizontal scale 1 ns/div - 1000 s/div
Vertical sensitivity 500 µV/div - 10V/div
Vertical resolution 8 bits, 10 bits up to 100Mhz
Maximum voltage 400 V (peak - peak)
Connectors 2x USB 2.0 Host, USB 2.0 Device, LAN, EXT (TRIG OUT, PASS/FAIL)
Dimensions 352 x 224 x 111 mm
Weight 2 channels: 3.3 kg
4 channels: 3.9 kg

Highlights

SDS2000X Plus display
With the large 10.1" touchscreen display, the oscilloscope can be operated just like a smartphone.
SDS2000X Plus Memory depth
Using the exceptionally high memory depth of 200 Mpts, signals can be analysed in great detail.
SDS2000X Plus Waveform capture rate
Thanks to a waveform capture rate of no less than 120,000 wfms/s, the oscilloscope can capture all signals with the greatest ease.

Options

16 channel logic analyser This 16 channel logic analyser makes it possible to analyze digital signals. The specifications of this product can be found on the adjacent page

SPL2016

Siglent SPL2016 logic analyser
99 €99.00 Excl. VAT
Info
Function generator This option adds a 50 MHz arbitrary function generator to the scope.

SDS2000XP-FG

Siglent SDS2000X Plus option: 50 MHz function generator
204.96 €204.96 Excl. VAT
Info
Power analysis With this option you can add a power analysis option to your oscilloscope.

SDS2000XP-PA

Siglent SDS2000X Plus power analysis option
239 €239.00 Excl. VAT
Info
Serial triggering and decoding options Serial decoding allows you to decode serial protocols such as FlexRay, MIL-STD-1553B, I2S and CAN FD on the scope.

Serial decoding

Siglent SDS2000X Plus serial decoding option
210.74 €210.74 Excl. VAT
Info

Accessories

The Siglent SDS2104X Plus is supplied including:

  • USB cable
  • Passive probes (1 per channel)
  • Power cord
  • Calibration certificate

Pros and cons

  • Large memory depth
  • Large display
  • Switchable 50Ω impedance
  • Less buttons and dials

Downloads
