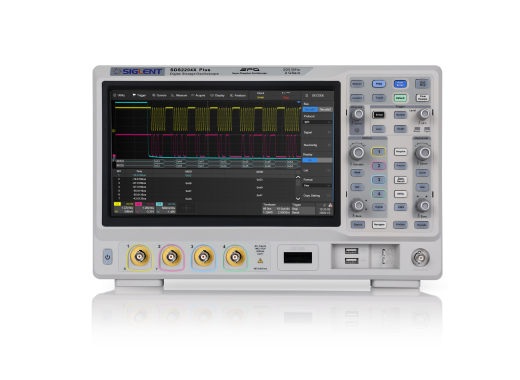

Siglent SDS2204X Plus oscilloscope
Details
The Siglent SDS2204X Plus oscilloscope is the 4-channel 200 MHz version in the Siglent SDS2000X Plus series oscilloscopes.
The Siglent SDS2204X Plus oscilloscope offers a large and bright 10.1" screen. Because of the large screen, there is less space for knobs and buttons on the oscilloscope, but this is fully compensated by the modern multi-touch interface on the screen.
The series also features a 10 bit ADC @100MHz (Analog to Digital Converter), which is a nice feature compared to the majority of oscilloscopes that have only 8 bits as standard. The SDS2204X Plus now also comes with a trigger zone function, which makes advanced triggering easier.
By default the scope comes with a number of serial triggering and decoding options such as I2, SPI, UART, CAN and LIN. This makes the scope a very comprehensive model, which is now even more attractive because it is equipped with a very low noise floor (80 µV).
The already very complete oscilloscope can be expanded with a 16 channel logic analyser, arbitrary function generator, power analysis software, and with the software to decode additional protocols.
Model overview
The Siglent SDS2204X Plus is part of the SDS2000X Plus series. The following models are for sale from this series.
| Model | SDS2102X Plus | SDS2104X Plus | SDS2204X Plus | SDS2354X Plus |
|---|---|---|---|---|
| Bandwidth | 100 MHz | 100 MHz | 200 MHz | 350 MHz |
| Rise time | 3.5ns | 3.5ns | 1.7ns | 1.0ns |
| Total memory | 200 Mpts | 400 Mpts | 400 Mpts | 400 Mpts |
| Number of channels | 2 | 4 | 4 | 4 |
| Price |
Specifications
| Memory | Up to 200 Mpts per channel |
| Waveform capture rate (max) | 120,000 wfms/s (normal) 500,000 wfms/s (sequence mode) |
| Sample rate (half of all channels in use) | 2 GSa/s |
| Sample rate (all channels in use) | 1 GSa/s |
| Display | 10.1" multi-touch screen (1024 x 600) |
| Ingress impedance | 1 MΩ |
| Horizontal scale | 1ns/div - 1000s/div |
| Vertical sensitivity | 500 µV/div - 10V/div |
| Vertical resolution | 8 bits, 10 bits up to 100Mhz |
| Maximum voltage | 400 V (peak - peak) |
| Connectors | 2x USB 2.0 Host, USB 2.0 Device, LAN, EXT (TRIG OUT, PASS/FAIL) |
| Dimensions | 352 x 224 x 111 mm |
| Weight | 2 channels: 3.3kg 4 channels: 3.9kg |
Highlights
|
With the large 10.1" touchscreen display, the oscilloscope can be operated just like a smartphone. |
|
Using the exceptionally high memory depth of 200 Mpts, signals can be analysed in great detail. |
|
Thanks to a waveform capture rate of no less than 120,000 wfms/s, the oscilloscope can capture all signals with the greatest ease. |
Options
| 16 channel logic analyser (hardware) | SPL2016 | |
| Power analysis deskew fixture (hardware) | DF2001A | |
| 100 MHz to 350 MHz bandwidth upgrade (For 2CH only) (software) | SDS2000XP-2BW02 | |
| 100 MHz to 200 MHz bandwidth upgrade (For 4CH only) (software) | SDS2000XP-4BW02 | |
| 200 MHz to 350 MHz bandwidth upgrade (For 4CH only) (software) | SDS2000XP-4BW03 | |
| 350 MHz to 500 MHz bandwidth upgrade (For 4CH only) (software) | SDS2000XP-4BW05 | |
| Function generator (software) | SDS2000XP-FG | |
| Power analysis (software) | SDS2000XP-PA | |
| SENT serial triggering and decoding (software) | SDS2000XP-SENT | |
| Manchester serial triggering and decoding (software) | SDS2000XP-Manchester | |
| FlexRay serial triggering and decoding (software) | SDS2000XP-Flexray | |
| MIL1553B serial triggering and decoding (software) | SDS2000XP-MIL1553B | |
| CAN FD serial triggering and decoding (software) | SDS2000XP-CANFD | |
| I2S serial triggering and decoding (software) | SDS2000XP-I2S |
Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
Accessories
The Siglent SDS2204X Plus is supplied including:
- USB cable
- Passive probes (1 per channel)
- User manual
- Power cord
- Calibration certificate
Pros and cons
- Large memory depth
- Large display
- Switchable 50Ω impedance
- Less buttons and dials
Downloads
