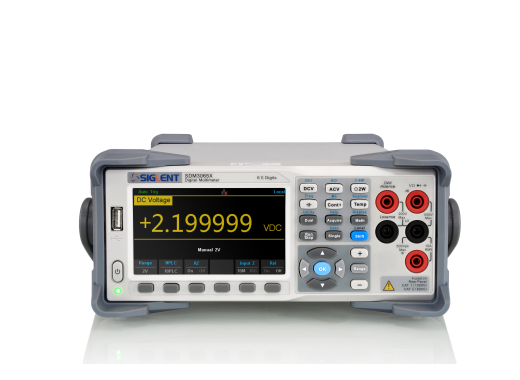

Siglent's SDM3065X is a dual-display digital multimeter with 6½ digit and 2 200 000 counts.
So this multimeter has a high precision and offers the possibility to perform True-RMS
measurements for AC voltage and current. In addition, this device combines accurate standard measurement functions with multiple mathematical functions and display choices, including histogram, trend graph, bar graph, statistics, hold measurement, dBm, ect. Furthermore, the SDM3065X is able to perform automatic measurements and can also be measured with a thermocouple (types B, E, J, K, N, R, S and T).
Memory and connectivity
The SDM3065X has a 1 Gb nand flash size and has interfaces for external storage, namely USB device, USB host and LAN. The Ethernet connection interface supports the common SCPI command. Using the supplied software, the measured data can be displayed in a graph or saved.
Specifications
| Measurements |
| Mode |
Range |
Best accuracy |
| Max. DC voltage |
1000 V |
±(0.0015 + 0.0004) |
| Max. DC current |
10 A |
±(0.007 + 0.001) |
| Max. AC voltage |
750 V |
±(0.04 + 0.02) |
| Max. AC current |
10 A |
±(0.10 + 0.04) |
| Max. resistance |
100 MΩ |
±(0.0020 + 0.0005) |
| Frequency |
3 Hz - 1 MHz |
±(0.01) |
| Max. capacitance |
100 mF |
±(1 + 0.1) |
| Temperature |
-200 °C ~ +1820 °C |
±(0.02 °C) |
|
| Display |
6 1/2 digit display - 2 200 000 counts |
| Connectivity |
USB Device, USB Host, LAN |
| Safety |
IEC 61010-1; EN 61010-1; UL 61010-1; CAN/CSA-C22.2 No. 61010-1 Measurement CAT I 1000 V/CAT II 600 V |
| Display |
4.3” TFT-LCD, resolution 480x272 |
| Dimensions |
345.45 mm x 260.29 mm x 107.21 mm |
| Weight |
3.4 kg |
Options
By means of the following options you can add additional features.
| USB to GPIB |
With this option, you can can control the function generator through GPIB.
| |
| Current shunt |
With this option, you can expand the measurement current range of the multimeter.
| |
Accessories
The Siglent SDM3065X comes with:
- Power cord
- 2 test leads and 2 crocodicle clips
- USB cable
- Manual
