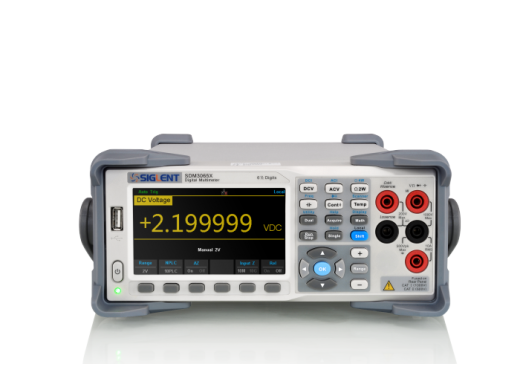

Siglent SDM3065X with 12-channel multiplexer

938 €938.00 Excl. VAT
Loading stock info
  •
Product number: ELE001724

Be the first to review this product

Lowest price guaranteed

Details

Siglent's SDM3065X is a dual-display digital multimeter with 6½ digit and 2 200 000 counts. So this multimeter has a high precision and offers the possibility to perform True-RMS measurements for AC voltage and current. In addition, this device combines accurate standard measurement functions with multiple mathematical functions and display choices, including histogram, trend graph, bar graph, statistics, hold measurement, dBm, ect. Furthermore, the SDM3065X is able to perform automatic measurements and can also be measured with a thermocouple (types B, E, J, K, N, R, S and T).

Memory and connectivity

The SDM3065X has a 1 Gb nand flash size and has interfaces for external storage, namely USB device, USB host and LAN. The Ethernet connection interface supports the common SCPI command. Using the supplied software, the measured data can be displayed in a graph or saved.

Multiplexer

If you order the Siglent SDM3065X on this page, a multiplexer with 12 channels is included!

Specifications

Measurements
Mode Range Best accuracy
Max. DC voltage 1000 V ±(0.0015 + 0.0004)
Max. DC current 10 A ±(0.007 + 0.001)
Max. AC voltage 750 V ±(0.04 + 0.02)
Max. AC current 10 A ±(0.10 + 0.04)
Max. resistance 100 MΩ ±(0.0020 + 0.0005)
Frequency 3 Hz - 1 MHz ±(0.01)
Max. capacitance 100 mF ±(1 + 0.1)
Temperature -200 °C ~ +1820 °C ±(0.02 °C)
Display 6 1/2 digit display - 2 200 000 counts
Connectivity USB Device, USB Host, LAN
Safety IEC 61010-1; EN 61010-1; UL 61010-1; CAN/CSA-C22.2 No. 61010-1 Measurement CAT I 1000 V/CAT II 600 V
Display 4.3” TFT-LCD, resolution 480x272
Dimensions 345.45 mm x 260.29 mm x 107.21 mm
Weight 3.4 kg

Options

By means of the following options you can add additional features.

USB to GPIB With this option, you can can control the function generator through GPIB.

USB-GPIB

 Siglent USB-GPIB adapter
123 €123.00 Excl. VAT
Info

Accessories

The Siglent SDM3065X comes with:

  • Power cord
  • 2 test leads and 2 crocodicle clips
  • USB cable
  • Manual

Downloads

SDM3065X datasheet
pdf (986.37 KB)Download
SC1016 datasheet
pdf (1.29 MB)Download
Siglent SDM3065X manual
pdf (3.64 MB)Download
