196.69 €196.69 Excl. VAT
This product is retired
  •
Product number: ELE000540

Details

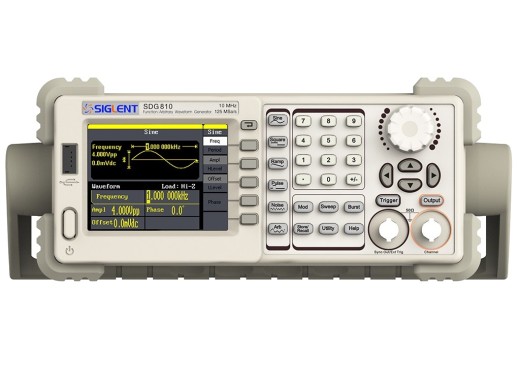

The Siglent SDG805 function generator has a bandwidth of 5 MHz.

The Siglent SDG800 series function generators feature a 3.5” LCD screen and are capable of generating a large variety of functions due to the 14 bits D/A converter. Apart from 5 standard functions, 46 other non-standard functions are pre-installed. Arbitrary waveforms can easily be stored via USB using a PC. There are 10 memory slots available to easily store and recall these functions.

Furthermore, the SDG800 series models offer various modulation options such as AM, DSB-AM, FM, PM, FSK, ASK, PWM, Sweep, and Burst.

The generators have two USB ports, one at the front and one at the back, for various Host/Device applications. With the supplied software, signals can be generated easily.

Models

The models in the SDG800 series differ mainly in bandwidth. Their key specifications are displayed conveniently in the table below.

ModelSDG805SDG810SDSG830
Maximal output frequency 5 MHz 10 MHz 30 MHz
Arbitrary waveform length 16kpts 16kpts 16kpts
Sample rate 125 MS/s 125 MS/s 125 MS/s
Price (incl. VAT)  196.69 €196.69 Excl. VAT 169 €169.00 Excl. VAT 199 €199.00 Excl. VAT

Specifications

Vertical resolution 14 bits
Display 3,5" TFT, 320x240 pixels
Built-in functions Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC
Check the datasheet for other present functions.
Output impedance 50 Ω
Frequency range 1 μHz - 5 MHz
Amplitude range 2mVpp - 10Vpp (50&Omega)
Number of channels 1
Connections USB 2.0 type B
Weight (without box) 2.6 Kg
Dimensions 229 x 105 x 281 mm (BxHxL)

Options

Power amplifier 10W With this option, you can increase the output power.

SPA1010 Power amplifier

Siglent SPA1010 power amplifier 10W
359 €359.00 Excl. VAT
Info

Accessories

The Rigol SDG805 function generator come with the following accessories:

  • Quick-start manual (English)
  • USB cable
  • Power cord

Downloads

Latest customer reviews

Write a review

Read all reviews (1)

Review by Rogin Antonio
Posted on 29/07/2020
The SIGLENT SDG 805 function generator can be considered an option for an early-stage electronics engineer and more. I can recommend this signal generator to anyone passionate about electronics or technician in the field of service or even in the field of research. One problem is the rotary encoder button coming out of the socket for faster use. I think that a freqvency counter could have been integrated in this money. I don't understand why the people from Siglent didn't give a push button function to the rotary encoder, it is functional but it doesn't help in navigating through the user interface. The construction is robust and relatively elegant, the working interface is very intuitive and the accommodation with the generator is very fast. I recommend this equipment to those looking for a signal generator with a good value for money.
