Siglent SAP2500 active probe
Details
The Siglent SAP2500 is an active probe for use with the Siglent SDS5000X/SDS6000A series oscilloscopes. They are compact probes designed to meet today’s increasing demand for measurements on a variety of test points. With a low input capacitance and high input resistance, the circuit loading is minimized. Furthermore, the SAPBus interface ensures that the SAP2500 becomes an integral part of the oscilloscope, which means that the probe can be controlled from the oscilloscope’s front panel. Since the oscilloscope provides power to the probe, there is no need for a separate power supply or extra batteries.
Specifications
| Bandwidth | 2.5 GHz |
| Attenuation | 10:1 |
| Probe offset range | ±12 V |
| Input dynamic range | ±8 V |
| Input impedance | 1 MΩ |
| Input capacitance | 1.1 pF |
| Max. input voltage | 20 V |
| Connectivity | SAPBus interface |
| Cable length | 1.3 m |
| Probe head | 83.0 x 14.1 x 6.4 mm |
Accessories

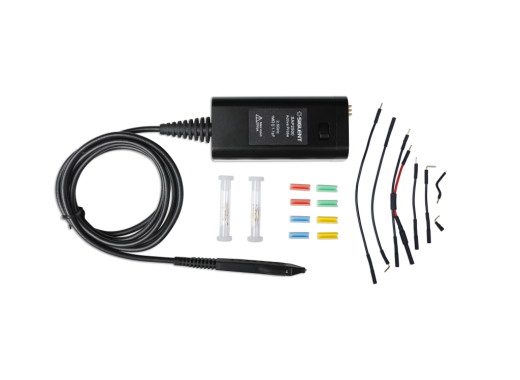

The Siglent SAP2500 comes with:
- 5 x Straight tip
- 5 x Pogo tip
- 1 x L - in adapter
- 1 x Z - ground
- 1 x Y lead adapter
- 1 x Right angle pin lead (5 cm)
- 1 x Straight pin lead (6 cm)
- 1 x Right angle pin lead (10 cm)
- 1 x Straight pin lead (12 cm)
- 1 x Channel clips (set of 4 colours)
Pros and cons
- 2.5 GHz
- SAPBus interface
Downloads
| SAP2500 User Manual |  (1.44 MB) | Download |
