Siglent SDS6054A oscilloscope

6480.17 €6,480.17 Excl. VAT

Loading stock info

Product number: ELE005258

Lowest price guaranteed

Details

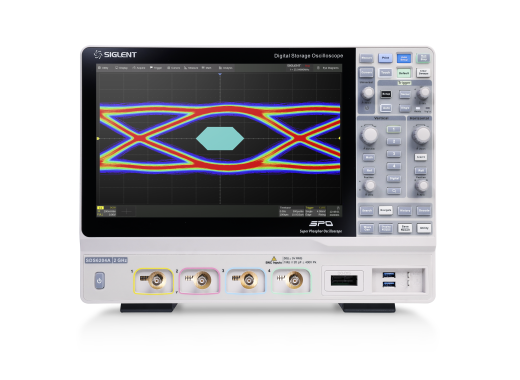

The Siglent SDS6000A series oscilloscopes are the new flagship 4-channel oscilloscopes and the SDS6054A is the 500 MHz version within this series. This series oscilloscopes employ Siglent's SPO technology which ensures high capture rates and an Enhanced Sample Rate (ESR) function that guarantees better measure accuracy by using a 2x interpolation technique. Oscilloscopes in the SDS6000A series have a digital trigger system with high sensitivity and low jitter. Furthermore, these oscilloscopes have tools such as History waveform recording, search and navigate, Mask test, Bode plot, power analysis and eye/jitter analysis functions. You can find all software expansions below under the heading options.
The SDS6000A series oscilloscopes have a big 12.1" touch-screen display which has a 256-level intensity and color temperature display function and supports multi-touch gestures. Furthermore these oscilloscopes feature a wide range of connectivity ports and can be controlled remotely via web control over LAN.

Model	SDS6054A	SDS6104A	SDS6204A
Bandwidth	500 MHz	1 GHz	2 GHz
Rise time	550 ps	350 ps	230 ps
Price	6480.17 €6,480.17 Excl. VAT	7880 €7,880.00 Excl. VAT	9980.17 €9,980.17 Excl. VAT

Specifications

Sample rate (Max)	5 GSa/s (10 GSa/s ESR)
Memory depth	500 Mpts (single channel) 250 Mpts (dual channel) 125 Mpts (3/4 channel)
Waveform capture rate	170000 wfm/s (750000 wfm/s in sequence mode)
Vertical resolution	8 bit (16 bit in Hi-Res mode)
Vertical scale Horizontal scale	0.5 mV/div - 10 V/div (0.5mV-1V/div @ 50Ω) 0.5 ns/div - 1000 s/div
Trigger types	Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Setup/hold, Delay, Serial
Serial trigger and decode	I2C, SPI, UART, CAN, LIN
Max input voltage	400 Vpk @ 1 MΩ 5 Vrms @ 50Ω
Display	12.1" LCD Touch-screen (1280x800 Px)
Connectivity	USB host/device, LAN, micro SD, HDMI, ext. trigger, Aux
Dimensions	379 x 159 x 288 mm LxWxH
Weight	7.1 kg

Options

The options for the SDS6000A series oscilloscopes are available on request. Please let us know by email/phone if you would like to add an option to your order.

Deskew fixture for voltage and current probes (hardware)	DF2001A	219 €219.00 Excl. VAT
SAG1021I function generator (hardware)	SAG1021I	239 €239.00 Excl. VAT
SPL2016 logic analyser (hardware)	SPL2016	425.01 €425.01 Excl. VAT
Power analysis (software)	SDS6000Pro-PA	900 €900.00 Excl. VAT
I2S trigger & decode (software)	SDS6000Pro-I2S	380 €380.00 Excl. VAT
MIL-STD-1553B trigger & decode (software)	SDS6000Pro-1553B	380 €380.00 Excl. VAT
FlexRay trigger & decode (software)	SDS6000Pro-FlexRay	380 €380.00 Excl. VAT
CAN FD trigger & decode (software)	SDS6000Pro-CANFD	380 €380.00 Excl. VAT
SENT trigger & decode (software)	SDS6000Pro-SENT	380 €380.00 Excl. VAT
Manchester decode (software)	SDS6000Pro-Manch	380 €380.00 Excl. VAT
ARINC429 decode (software)	SDS6000Pro-ARINC	775 €775.00 Excl. VAT
Bandwidth upgrade 500MHz->1GHz (software)	SDS6000-4BW10	1880 €1,880.00 Excl. VAT
Bandwidth upgrade 1GHz->2GHz (software)	SDS6000-4BW20	2780 €2,780.00 Excl. VAT

Siglent offers a wide range of software options for their products, often adding a lot of functionalities. For all information about the available options, please refer to the user manual at the bottom of this page.
